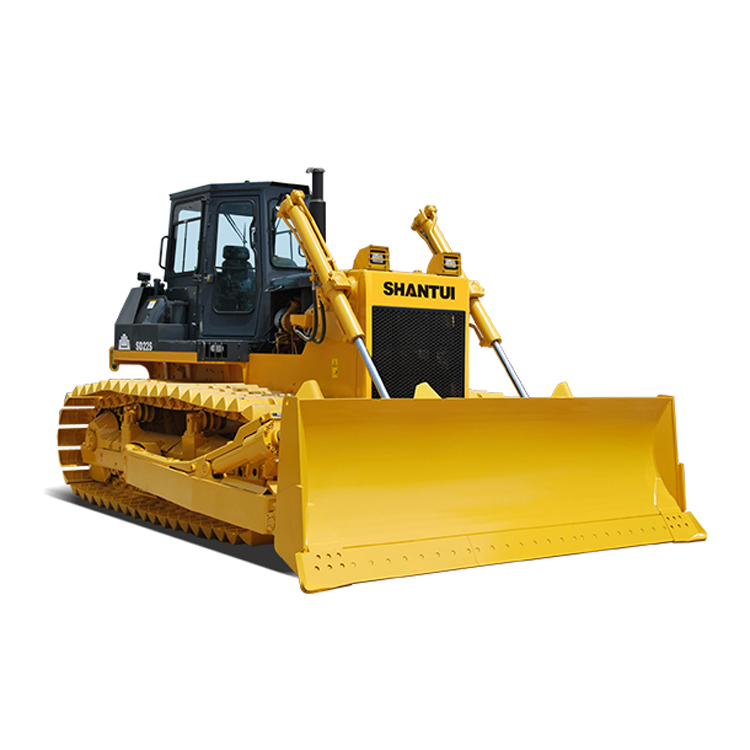

Shantui Bulldozer SD22C

Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

Shantui Bulldozer SD22C

220hp Coal Bulldozer



Blade Capacity: 9.0CBM

Blade Type: Coal Blade

Engine Power: 162kw or 175kW/1800rpm

Engine Model: Cummins NT855-C280, QSNT-C235 or Weichai WP12

Track Shoes Width: 660mm

Overall Weight: 24,000kg (Standard)





SHANTUI SD22C is hot model used for coal yard high efficiency working. SD22C coal bulldozer is a modified form of the SD22, featuring advanced performance, high reliability, low fuel consumption and convenient maintenance. The SD22C has a high-capacity coal-dozing blade and is equipped with an engine intake pre-filtering device, helping adapt it to transferring, paving and stacking operations often performed in coal mines and power plant coal yards.The application of concentrated lubrication and track shoe auto tighten,patent technologies makes the maintenance convenient and improves the machine’s working life. Centralized pressure survey makes the testing and diagnosis of the machine malfunction more easy. There are skid proof pedal one two sides, protect your safe.

Coal Bulldozer Shantui SD22C Best Front Coal Dozer for Sale.



Power System

The installed Cummins NT855-C280,QSNT-C235 or Weichai WP12 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

The rated power reaches 162kw and 175kW, featuring high torque reserve coefficient.

The radially sealed intake system is applied to effectively prolong the engine life.



Drive system

The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

Shantuis self-made drive system features stable performance and reliable quality and has been long proved by the market.



Driving/Riding Environment

 Hexahedral cab, large internal space and open vision, FOPS/ROPS can be configured according to requirements, safe and reliable;
 Electronic control and foot throttle, more accurate operation and more comfortable;
 Configuration intelligent display control terminal, heating and cooling air conditioning, etc., to provide more humane driving experience, let you know the system status at any time, intelligent and convenient.

PARAMETER

Parameter name

SD22C

 (Coal Version)

Performance parameters



Operating weight (Kg)

24000

Ground pressure (kPa)

57.5

Engine



Engine model

WP12/QSNT-C235

Rated power/rated speed (kW/rpm)

175/1800

Overall dimensions



Overall dimensions of machine (mm)

5820*4200*3402

Driving performance



Forward speed (km/h)

F10-3.6 F2:0-6.5 F3:0-11.2

Reversing speed (km/h)

R1:0-4.3 R2:0-7.7 R3:0-13.2

Chassis System



Center distance of track (mm)

2000

Width of track shoes (mm)

660

Ground lengthmm

2730

Tank capacity



Fuel tank (L)

450

Working device



Blade type

Coal blade

Digging depth (mm)

538

Ripper type

Single-shank three-shank

Ripping depth (mm)

695 (Single-shank) and 666 (Three-shank)
