Shantui Bulldozer SD22F

Blade Capacity: 6.4/ 7.5/ 4.7CBM
Blade Type: Straight Titling Blade/ U Blade/ Angle Blade
Engine Power: 162kw or 175kW/1800rpm
Engine Model: Cummins NT855-C280, QSNT-C235 or Weichai WP12
Track Shoes Width: 610/ 660mm
Overall Weight: 24,700kg (Stan
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

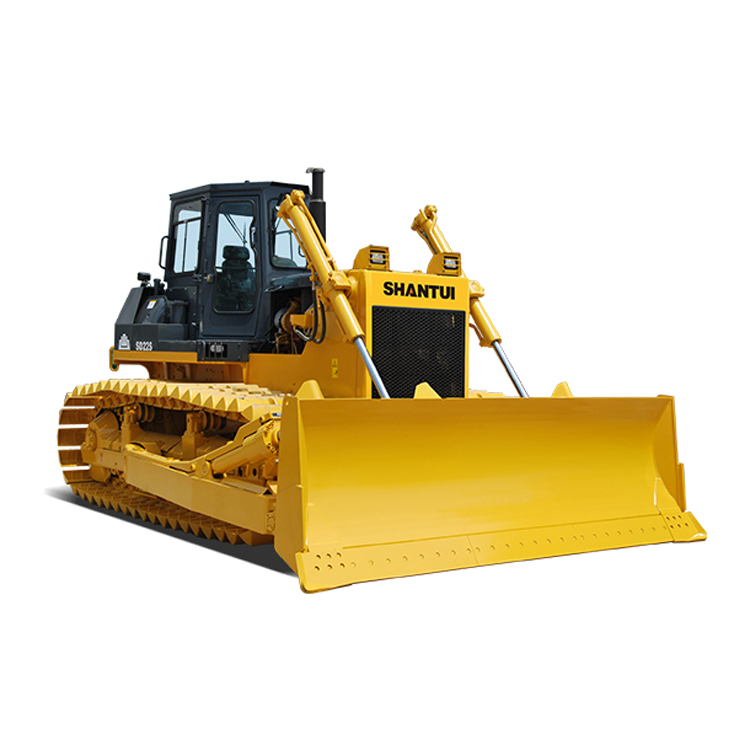

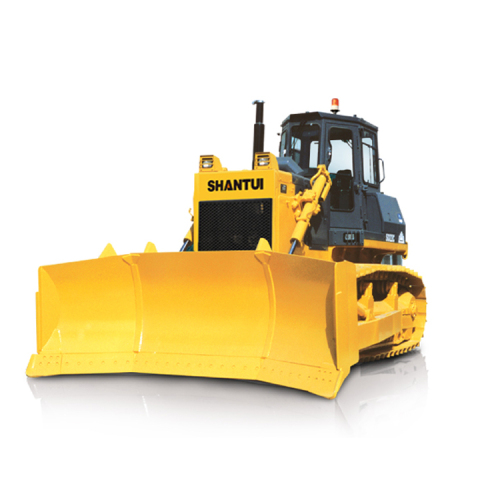

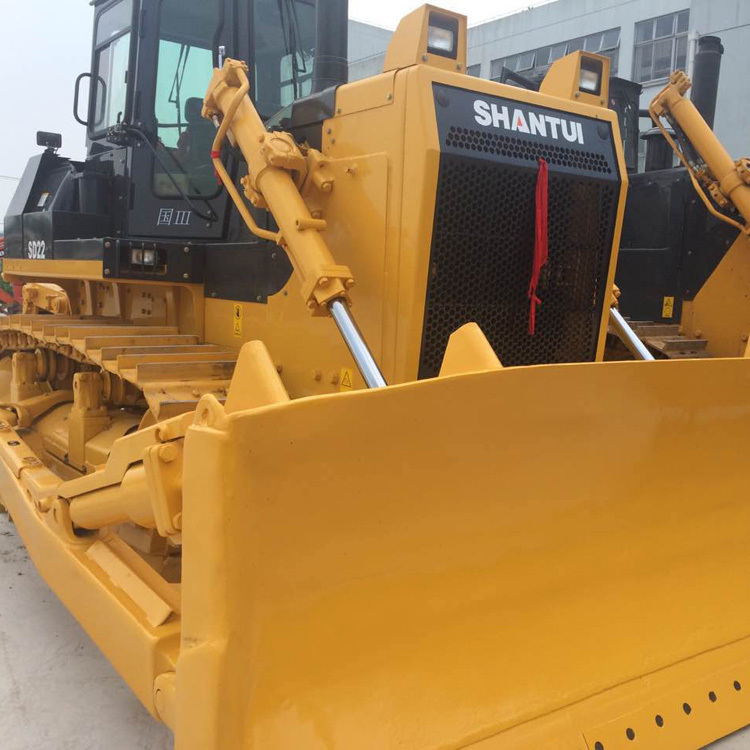

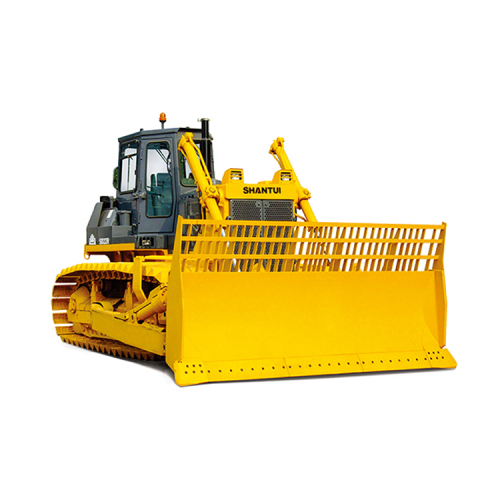

Shantui Bulldozer SD22F

220hp Forest Bulldozer



Blade Capacity: 6.4/ 7.5/ 4.7CBM

Blade Type: Straight Titling Blade/ U Blade/ Angle Blade

Engine Power: 162kw or 175kW/1800rpm

Engine Model: Cummins NT855-C280, QSNT-C235 or Weichai WP12

Track Shoes Width: 610/ 660mm

Overall Weight: 24,700kg (Standard)

SHANTUI SD22F forest type bulldozer is specially designed for operations in wooded areas. SD22F forest bulldozer has advanced performance, high reliability, low fuel consumption and convenient maintenance. It’s equipped with a ROPS canopy and cab, a wider track (610 mm and 660mm) and a mechanical winch. SD22F has excellent maneuverability and self-rescue capabilities. Shantui SD22F easily adapts to logging, stacking, hauling and transporting work in wooded areas.

Logging Bulldozer Shantui SD22F Forestry Bulldozer with Winch for Sale.



EATURES

● SD22F Shantui forest logging type bulldozers are designed specially for the forest working conditions, featuring the advanced technologies, high reliability, low consumption, and convenient maintenance. Furthermore, the antirolling cab for logging is provided.

● The anti-rolling cab and its shed special for logging, 610mm wide track and mechanical winch (optional) have the good trafficability and the self-help performance, suitable for lumbering, collecting and dragging of lumbers in rainforest and tree farm.



Power System

● The installed Cummins NT855-C280,QSNT-C235 or Weichai WP12 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

● The rated power reaches 162kw and 175kW, featuring high torque reserve coefficient.

● The radially sealed intake system is applied to effectively prolong the engine life.



Drive system

The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

Shantuis self-made drive system features stable performance and reliable quality and has been long proved by the market.



Driving/Riding Environment

 Hexahedral cab, large internal space and open vision, FOPS/ROPS can be configured according to requirements, safe and reliable;
 Electronic control and foot throttle, more accurate operation and more comfortable;
 Configuration intelligent display control terminal, heating and cooling air conditioning, etc., to provide more humane driving experience, let you know the system status at any time, intelligent and convenient.

PARAMETER

Parameter name

SD22F

 (Forestry version)

Performance parameters



Operating weight (Kg)

24700

Ground pressure (kPa)

64

Engine



Engine model

QSNT-C235

Rated power/rated speed (kW/rpm)

175/1800

Overall dimensions



Overall dimensions of machine (mm)

5495*3725*3402

Driving performance



Forward speed (km/h)

F10-3.6 F2:0-6.5 F3:0-11.2

Reversing speed (km/h)

R1:0-4.3 R2:0-7.7 R3:0-13.2

Chassis System



Center distance of track (mm)

2000

Width of track shoes (mm)

610/660

Ground lengthmm

2730

Tank capacity



Fuel tank (L)

450

Working device



Blade type

Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade

Digging depth (mm)

540

Ripper type

Single-shank three-shank

Ripping depth (mm)

695 (Single-shank) and 666 (Three-shank)
