Shantui Bulldozer SD22S

Blade Capacity: 6.4CBM
Blade Type: Straight Titling Blade
Engine Power: 162kw or 175kW/1800rpm
Engine Model: Cummins NT855-C280, QSNT-C235 or Weichai WP12
Track Shoes Width: 910mm
Overall Weight: 25,700kg (Standard)
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

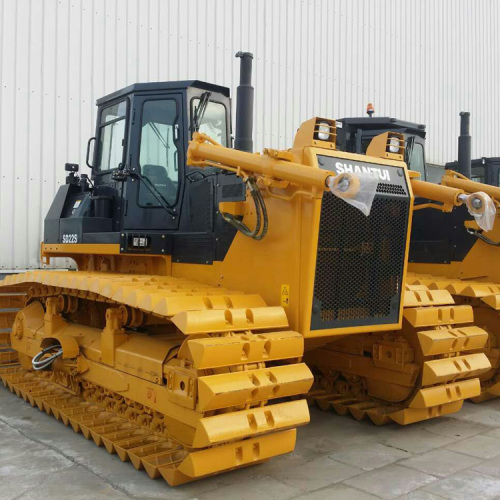

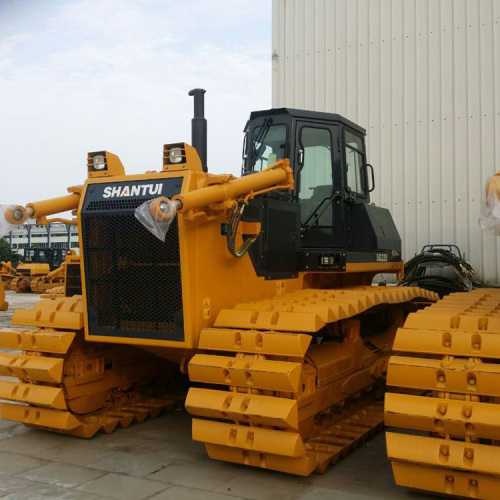

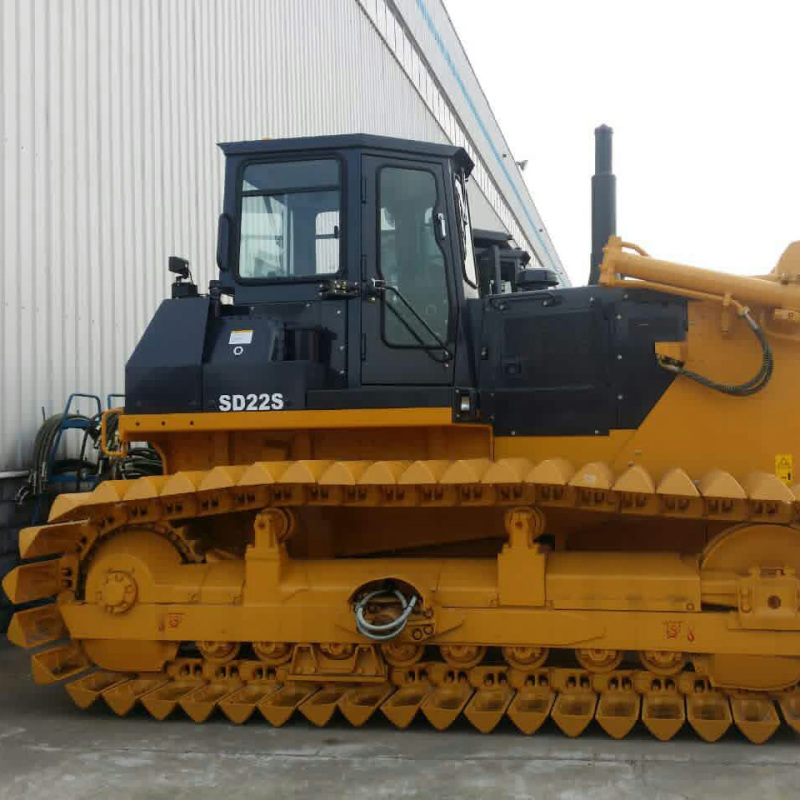

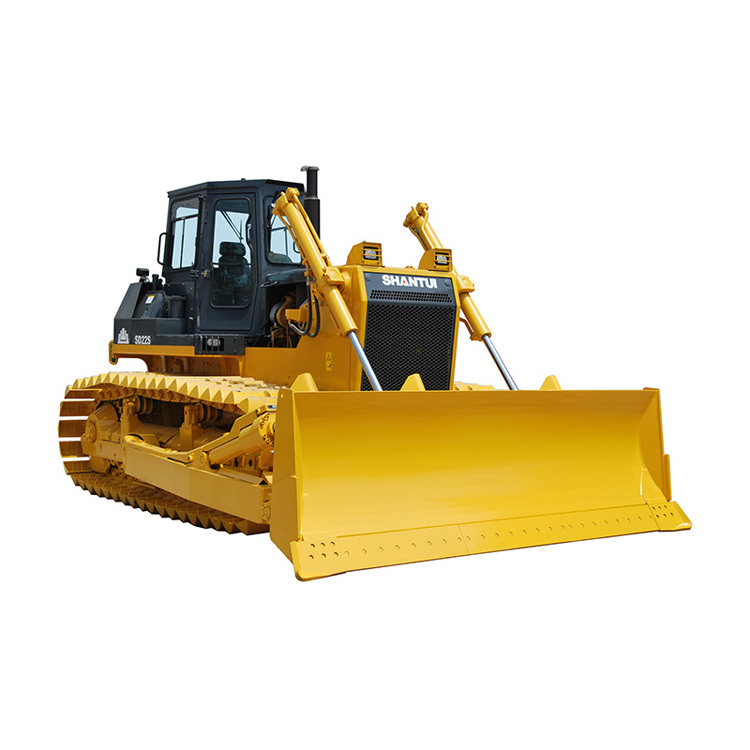

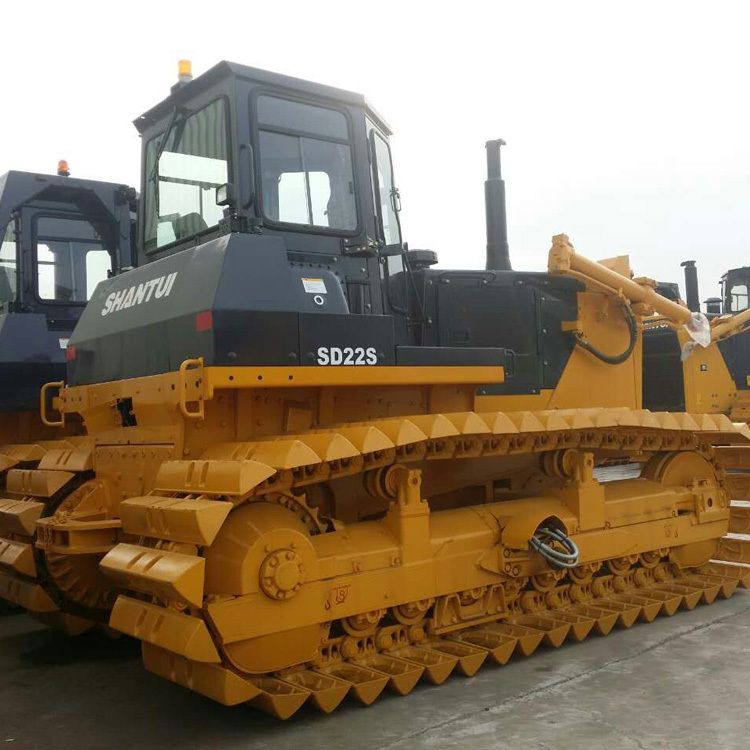

Shantui Bulldozer SD22S

220hp Wetland Swamp Bulldozer



Blade Capacity: 6.4CBM

Blade Type: Straight Titling Blade

Engine Power: 162kw or 175kW/1800rpm

Engine Model: Cummins NT855-C280, QSNT-C235 or Weichai WP12

Track Shoes Width: 910mm

Overall Weight: 25,700kg (Standard)



SHANTUI SD22S swamp bulldozer is specially designed for work in wetlands. Shantui SD22S bulldozer features advanced performance, high reliability, low fuel consumption and convenient maintenance, as well as being equipped with a 910 mm swamp-type extended track, which reduces ground pressure and improves maneuverability in wet areas. SD22S easily adapts to earth moving operations in swamps and other wet or muddy environments. Shantui SD22S Swamp Dozer for Sale Shantui Equipment Wetland Bulldozer.



FEATURES

Shantui SD22S wetland swamp bulldozers are designed specially for wetland working conditions, featuring the advanced technologies, high reliability, low fuel consumption and convenient maintenance.

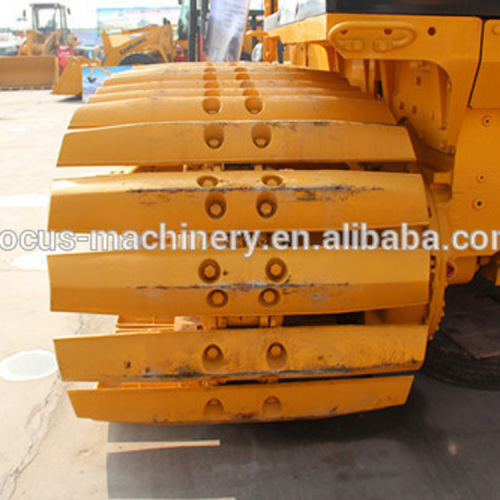

● The ground specific pressure is greatly lowered by using the extended trolley and the 910mm wide wetland track, featuring the excellent desert trafficability.



Power System

● The installed Cummins NT855-C280,QSNT-C235 or Weichai WP12 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

● The rated power reaches 162kw and 175kW, featuring high torque reserve coefficient.

● The radially sealed intake system is applied to effectively prolong the engine life.



Drive system

● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.



Driving/Riding Environment

● Hexahedral cab, large internal space and open vision, FOPS/ROPS can be configured according to requirements, safe and reliable;
● Electronic control and foot throttle, more accurate operation and more comfortable;
● Configuration intelligent display control terminal, heating and cooling air conditioning, etc., to provide more humane driving experience, let you know the system status at any time, intelligent and convenient.

PARAMETER

Parameter name

SD22S

 (Wetland version)

Performance parameters



Operating weight (Kg)

25700

Ground pressure (kPa)

35.2

Engine



Engine model

WP12/QSNT-C235

Rated power/rated speed (kW/rpm)

175/1800

Overall dimensions



Overall dimensions of machine (mm)

6290*4365*3402

Driving performance



Forward speed (km/h)

F10-3.6 F2:0-6.5 F3:0-11.2

Reversing speed (km/h)

R1:0-4.3 R2:0-7.7 R3:0-13.2

Chassis System



Center distance of track (mm)

2250

Width of track shoes (mm)

910

Ground lengthmm

3480

Tank capacity



Fuel tank (L)

450

Working device



Blade type

Straight tilting blade

Digging depth (mm)

550

Ripper type

——

Ripping depth (mm)

——
