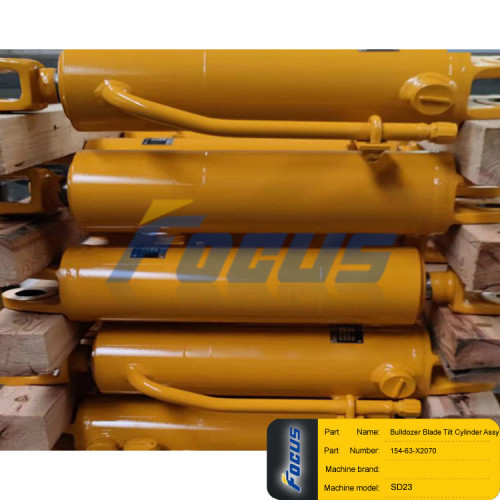

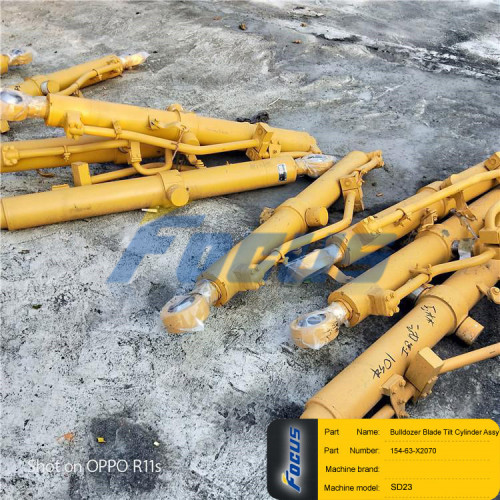

Shantui SD23 Bulldozer Blade Tilt Cylinder Assy 154-63-X2070
Part Name: Bulldozer Blade Tilt Cylinder Assy
Part Number: 154-63-X2070
Machine Model: SD23
Hotline:0086-18052293627 (whatsapp & wechat)
|

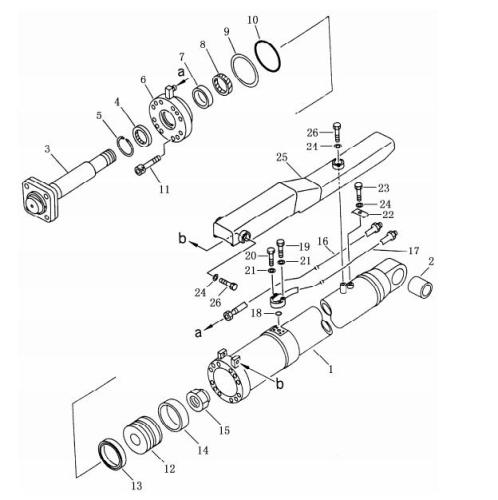

154-63-X2070 |
铲刀倾斜油缸总成 blade tilt cylinder ass’y |
1 |
| 703-1 |
154-63-53141 |
缸体 body cylinder |
1 |
| 2 |
154-63-52760 |
衬套 bushing |
1 |
| 3 |
154-63-53120 |
活塞杆 rod piston |
1 |
| 4 |
195-63-92190 |
防尘圈 seal dust |
1 |
| 5 |
07179-13094 |
弹性挡圈 ring snap |
1 |
| 6 |
707-27-16211 |
缸头 head cylinder |
1 |
| 7 |
07177-08030 |
衬套 bushing |
1 |
| 8 |
707-51-80211 |
密封圈 packing |
1 |
| 9 |
07146-05152 |
保护圈 ring back-up |
1 |
| 10 |
07000-15150 |
O 型圈 o-ring |
1 |
| 11 |
01252-31865 |
螺栓 bolt |
12 |
| 12 |
707-36-16150 |
活塞 piston |
1 |
| 13 |
707-44-16180 |
活塞环 ring piston |
1 |
| 14 |
07155-01640 |
耐磨环 ring wear |
1 |
| 15 |
07165-16264 |
螺母 nut |
1 |
| 16 |
154-71-45120 |
管 tube |
1 |
| 17 |
154-71-45130 |
管 tube |
1 |
| 18 |
07000-13025 |
O 型圈 o-ring |
1 |
| 19 |
01010-50845 |
螺栓 bolt |
2 |
| 20 |
01010-50835 |
螺栓 bolt |
2 |
| 21 |
01643-30823 |
垫圈 washer |
4 |
| 22 |
195-63-52871 |
管夹 clip |
1 |
| 23 |
01010-51425 |
螺栓 bolt |
1 |
| 24 |
01643-31445 |
垫圈 washer |
4 |
| 25 |
154-71-45140 |
盖 cap |
1 |
| 26 |
01010-51435 |
螺栓 bolt |
3 |
