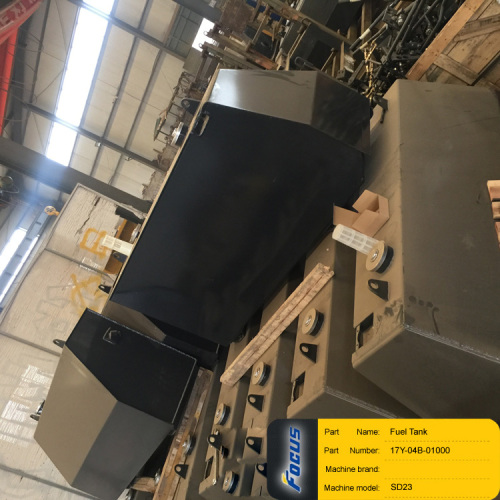

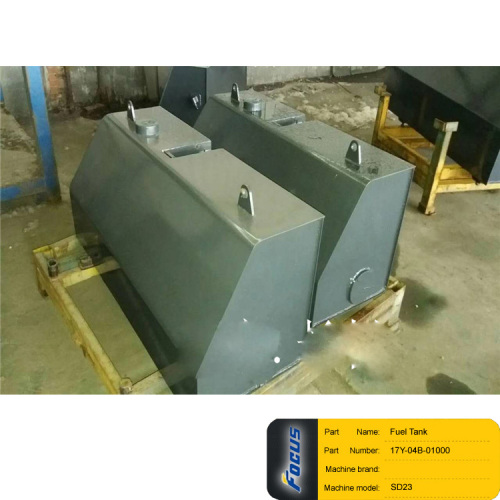

Shantui SD23 Fuel Tank 17Y-04B-01000
Part Name: Fuel Tank
Part Number: 17Y-04B-01000
Machine Model: SD23
Hotline:0086-18052293627 (whatsapp & wechat)
Mail:
bulldozer@cnfocusgroup.com
| 1 |
17Y-04B-01000 |
燃油箱 tank fuel |
|
1 |
| 3 |
154-04-51140 |
油尺 gauge |
|
1 |
| 4 |
16Y-04C-02000 |
燃油箱盖 cap, fuel tank |
|
1 |
| 5 |
07000-03035 |
O 形圈 O-ring |
|
2 |
| 6 |
195-04-11230 |
眼圈接头 joint eye |
|
1 |
| 7 |
195-04-11280 |
螺栓接头 bolt joint |
|
1 |
| 8 |
21T-26-71130 |
连接器 adapter(without towing winch) |
|
1 |
| 9 |
07700-40460 |
阀门 valve |
|
1 |
| 10 |
07325-10400 |
接头 nipple |
|
1 |
|
07058-20000 |
过滤器 filter ass’y |
|
1 |
| 11 |
07058-00001 |
箍 hoop |
|
1 |
| 12 |
07058-00005 |
芯 element |
|
1 |
| 13 |
07058-00006 |
环 ring |
|
1 |
| 14 |
07002-04234 |
O 形圈 O-ring |
|
1 |
| 15 |
07058-00007 |
堵 plug |
|
1 |
| 16 |
01010-50825 |
螺栓 bolt |
|
2 |
| 17 |
01643-30823 |
垫圈 washer |
|
2 |
| 18 |
155-04-11211 |
托架 bracket(without towing winch) |
|
1 |
| 19 |
01010-51225 |
螺栓 bolt |
|
2 |
| 20 |
01643-31232 |
垫圈 washer |
|
2 |
| 21 |
15A-04-11111 |
盖 cover |
|
1 |
| 22 |
07000-05290 |
O 形圈 O-ring |
|
1 |
| 23 |
01010-31025 |
螺栓 bolt |
|
10 |
| 24 |
01643-31032 |
垫圈 washer |
|
10 |
| 25 |
07270-21022 |
软管 tube |
|
1 |
| 26 |
07281-00197 |
喉箍 clamp |
|
2 |
| 27 |
154-04-11540 |
接头 nipple |
|
1 |
| 28 |
20D-68-11670 |
弯头 elbow |
|
1 |
| 29 |
07700-40240 |
阀门 valve |
|
1 |
| 30 |
205-04-62130 |
弯管接头 elbow(without towing winch) |
|
1 |
| 31 |
07270-01065 |
软管 tube |
|
1 |
| 32 |
07281-00197 |
喉箍 clamp |
|
1 |
| 33 |
01010-52040 |
螺栓 bolt |
|
4 |
| 34 |
01643-32060 |
垫圈 washer |
|
4 |
