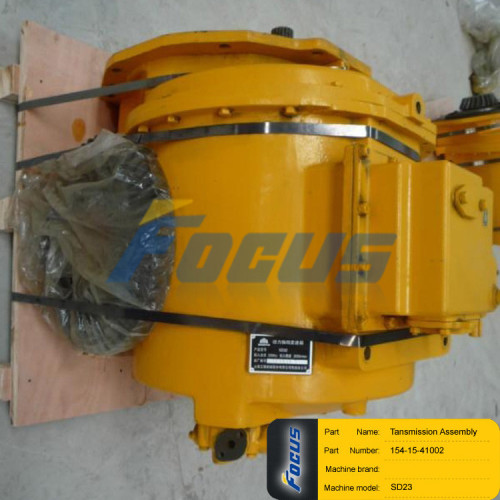

Shantui SD23 Tansmission Assembly 154-15-41002
Part Name: Transmission Assembly
Part Number: 154-15-41002
Machine Model: SD23
Hotline:0086-18052293627 (whatsapp & wechat)
| Index No. |
Part No. |
Description |
Q’ty |
|
|
this assembly consists of all |
|
|
154-15-41002 |
parts shown in figs.204 to 211。 |
1 |
| 205-1 |
154-15-42111 |
轴 shaft |
1 |
| 2 |
154-15-42230 |
齿轮 gear |
1 |
| 3 |
154-15-42160 |
环 collar |
1 |
| 4 |
154-15-42241 |
齿轮 gear |
1 |
| 5 |
04064-07025 |
卡环 ring, snap |
1 |
| 6 |
06000-06922 |
轴承 bearing |
1 |
| 7 |
06000-06014 |
轴承 bearing |
1 |
| 8 |
04065-01104 |
开口环 ring snap |
1 |
| 9 |
154-15-42171 |
环 collar |
1 |
| 10 |
154-15-42190 |
联轴承 coupling |
1 |
| 11 |
07000-05055 |
O 型圈 O-ring |
1 |
| 12 |
154-15-42180 |
托板 holder |
1 |
| 13 |
01051-51800 |
螺栓 bolt |
1 |
| 14 |
06000-06216 |
轴承 bearing |
1 |
| 15 |
04071-00140 |
开口环 ring snap |
1 |
| 16 |
07012-10100 |
油封 seal |
1 |
| 17 |
154-15-41171 |
油缸体 housing |
1 |
| 18 |
07043-70312 |
螺塞 plug |
1 |
| 19 |
144-15-21191 |
螺栓 bolt |
16 |
| 20 |
145-14-11570 |
垫圈 washer |
16 |
| 21 |
07000-05250 |
O 型圈 O-ring |
1 |
| 22 |
154-15-42331 |
行星架 carrier |
1 |
| 23 |
154-15-42440 |
齿轮 gear |
4 |
| 24 |
561-15-49410 |
轴承 bearing |
4 |
| 25 |
561-15-32590 |
止推垫圈 washer |
8 |
| 26 |
154-15-42530 |
轴 shaft |
4 |
| 27 |
04260-00635 |
铜珠 ball |
4 |
| 28 |
154-15-49510 |
半环 ring snap |
1 |
| 29 |
154-15-49260 |
密封环 ring seal |
2 |
