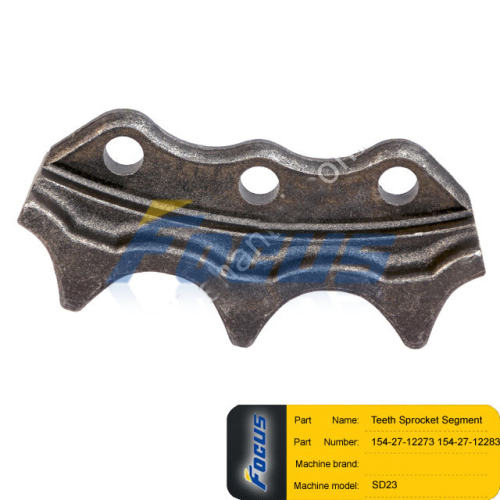

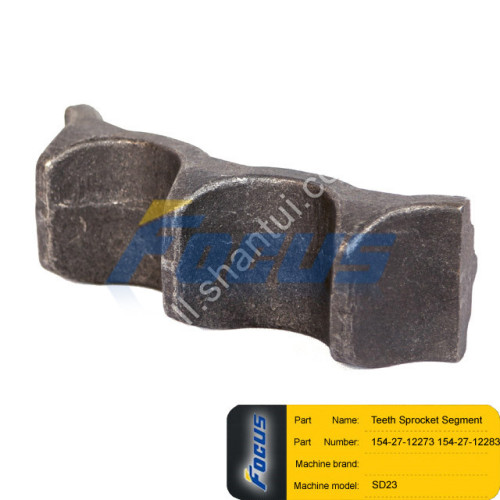

Shantui SD23 Teeth Sprocket Segment 154-27-12273 154-27-12283
Part Name: Teeth Sprocket Segment
Part Number: 154-27-12273 154-27-12283
Machine Model: SD23
Hotline:0086-18052293627 (whatsapp & wechat)
| Index No. |
件 号Part No. |
名 称 |
Q’ty |
|
Description |
SD23 SD23E |
|
|
|
SD23D |
SD23S SD23R |
| 220-1 |
154-27-12313 |
半轴 shaft |
2 |
|
|
154-27-15191 |
半轴 shaft |
|
2 |
| 2 |
170-27-12472 |
螺母 nut |
2 |
2 |
| 3 |
09243-01230 |
销 pin |
2 |
2 |
| 4 |
170-27-12480 |
环 ring |
2 |
2 |
| 5 |
154-27-12131 |
链轮毂 boss sprocket |
2 |
2 |
| 6 |
154-27-12273 |
链轮齿（3 牙）teeth sprocket 3-teash |
14 |
14 |
| 7 |
154-27-12283 |
链轮齿（2 牙）teeth sprocket 2-teash |
4 |
4 |
| 8 |
155-27-12181 |
螺栓 bolt |
50 |
50 |
| 9 |
01803-02228 |
螺帽 nut |
50 |
50 |
| 10 |
170-27-12232 |
链轮毂螺帽 nut hub |
2 |
2 |
| 11 |
07000-05315 |
O 型圈 O-ring |
2 |
2 |
| 12 |
175-27-31480 |
锁挡 stopper |
2 |
2 |
| 13 |
170-27-12250 |
定位销 pin dowel |
4 |
4 |
| 14 |
01252-41635 |
螺栓 bolt |
2 |
2 |
| 15 |
01602-21648 |
垫圈 washer |
2 |
2 |
| 16 |
04000-01280 |
键 key |
2 |
2 |
| 17 |
154-27-12352 |
隔套 spacer |
2 |
2 |
| 18 |
198-30-16612 |
浮封环 floating ring |
4 |
4 |
| 19 |
170-27-12340 |
O 型圈 O-ring |
4 |
4 |
| 20 |
154-27-12334 |
支承 support ass’y |
2 |
2 |
| 21 |
154-27-12341 |
轴瓦 bushing |
2 |
2 |
| 22 |
04020-01638 |
定位销 pin dowel |
2 |
2 |
| 23 |
175-27-32510 |
定位销 pin dowel |
2 |
2 |
| 24 |
154-27-12424 |
衬垫 spacer |
2 |
2 |
| 25 |
154-27-12412 |
螺帽 nut |
2 |
2 |
| 26 |
154-27-15240 |
垫板 plate |
2 |
2 |
| 27 |
154-27-15250 |
锁板 plate |
2 |
2 |
| 28 |
01010-51020 |
螺栓 bolt |
4 |
4 |
| 29 |
02892-03148 |
O 型圈 o-ring |
2 |
2 |
| 30 |
154-27-12362 |
盖 cover |
2 |
2 |
| 31 |
01010-51640 |
螺栓 bolt |
12 |
12 |
| 32 |
01643-31645 |
垫圈 washer |
12 |
12 |
