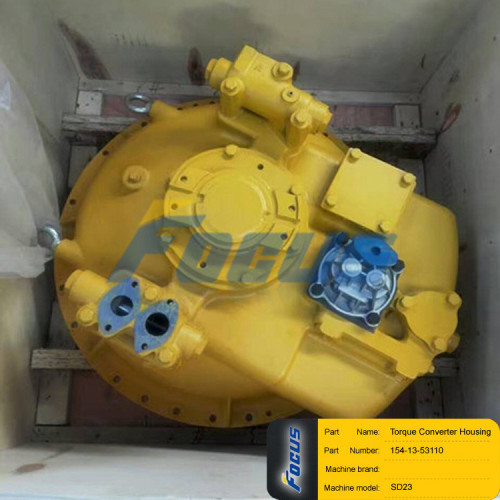

Shantui SD23 Torque Converter Housing 154-13-53110
Part Name: Torque converter housing
Part Number: HT250 154-13-53110
Machine Model: SD23
Hotline:0086-18052293627 (whatsapp & wechat)
| Index No. |
Part No. |
Description |
Q’ty |
|
154-13-51002 |
|
1 |
|
|
THIS ASSEMBLY CONSISTS OF ALL PARTS |
|
|
|
SHOWN IN Fig.202 and 203。 |
|
| 202-1 |
154-13-53110 |
壳 housing |
1 |
| 2 |
07042-70415 |
圆锥形塞 plug taper |
3 |
| 3 |
175-13-23220 |
盖 cover |
1 |
| 4 |
175-13-23232 |
密封垫 gasket |
1 |
| 5 |
01010-51225 |
螺栓 bolt |
4 |
| 6 |
01602-21236 |
垫圈 spring |
4 |
| 7 |
04530-01628 |
吊环螺栓 bolt eye |
2 |
| 8 |
07044-13620 |
磁性螺塞 plug magnetic |
1 |
| 9 |
07002-43634 |
O 形圈 O-ring |
1 |
| 10 |
09607-05080 |
铭牌 plate name |
1 |
| 11 |
04418-13060 |
自攻螺钉 screw tapping |
4 |
| 12 |
195-13-14111 |
齿轮 gear |
1 |
| 13 |
06030-05206 |
轴承 bearing |
1 |
| 14 |
04064-03015 |
开口环 ring snap |
1 |
|
134-13-13400 |
过滤器总成 filter ass’y |
1 |
| 15 |
134-13-13410 |
盖 cover |
1 |
| 16 |
07000-72070 |
O 形圈 O-ring |
1 |
| 17 |
195-13-13420 |
过滤器 filter |
1 |
| 18 |
134-13-13430 |
双头螺栓 stud |
1 |
| 19 |
01641-20608 |
垫圈 washer |
1 |
| 20 |
01590-10607 |
螺帽 nut |
1 |
| 21 |
04050-11212 |
开口销 pin cotter |
1 |
| 22 |
01010-51230 |
螺栓 bolt |
3 |
| 23 |
01643-31232 |
垫圈 washer |
3 |
|
175-13-23500 |
（回油）泵总成 pump ass’y |
1 |
|
175-13-23510 |
（传动）齿轮总成 gear ass’y |
1 |
| 24 |
175-13-23580 |
齿轮 gear |
1 |
| 25 |
175-13-23610 |
轴 shaft |
1 |
|
175-13-23520 |
（从动）齿轮总成 gear ass’y |
1 |
| 26 |
175-13-23580 |
齿轮 gear |
1 |
| 27 |
175-13-23620 |
轴 shaft |
1 |
| 28 |
175-13-23530 |
泵壳 case pump |
1 |
| 29 |
01190-01011 |
螺纹衬套 screw thread lining |
2 |
