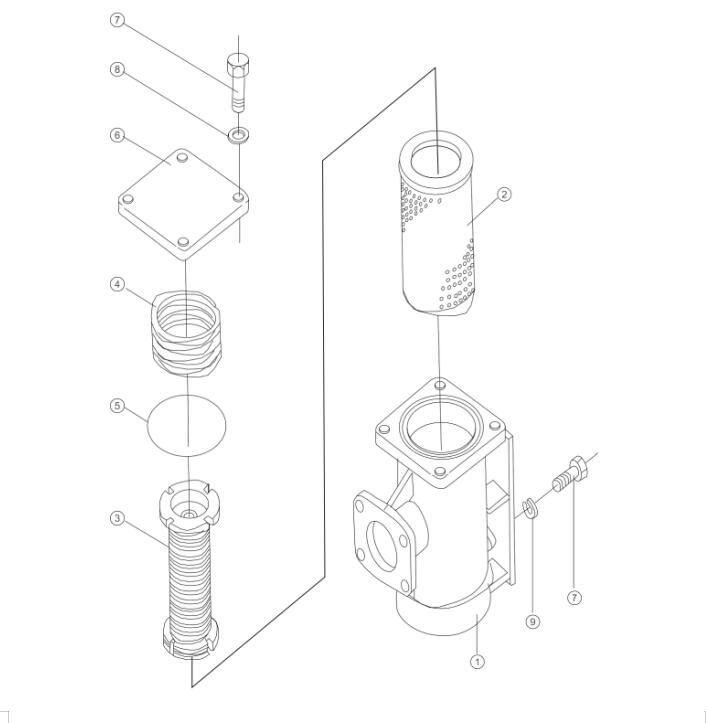

Shantui SD32 Coarse Strainer Assembly 17-49-22101
Part Name: Coarse Strainer Assembly
Part Number: 17-49-22101
Machine Model: SD32
Hotline:0086-18052293627 (whatsapp & wechat)
| 序号 |
部件号 |
零件名称 |
|
数量 |
适用机型 |
| NO. |
PART NO. |
PART NAME |
|
Q'TY |
MODEL |
| 1 |
175-49-22281 |
箱体 |
Box body |
1 |
|
| 2 |
175-49-11222 |
滤网 |
Filter screen |
1 |
|
| 3 |
175-49-11231 |
磁铁总成 |
Magnet ass'y |
1 |
|
| 4 |
154-19-11230 |
弹簧 |
Spring |
1 |
|
| 5 |
07000-13130 |
O 形圈 |
O-ring |
1 |
|
| 6 |
175-49-21690 |
盖 |
Cover |
1 |
|
| 7 |
01010-51235 |
螺栓 M12*35 |
Bolt M12*35 |
8 |
|
| 8 |
01602-21236 |
垫圈 12 |
Washer 12 |
4 |
|
| 9 |
01643-31232 |
垫圈 12 |
Washer 12 |
4 |
|
|
|
|
|
|
|
