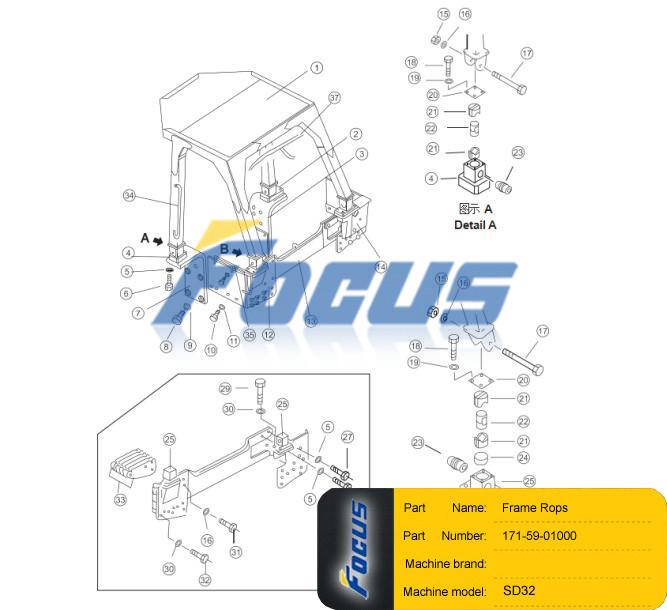

Shantui SD32 Frame Rops 171-59-01000
Part Name: Frame Rops
Part Number: 171-59-01000
Machine Model: SD32
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
| 序号 |
部件号 |
|
数量 |
| NO. |
PART NO. |
PART NAME |
Q'TY |
| 1 |
171-59-01000 |
Frame, ROPS |
1 |
| 2 |
171-59-07000 |
Bracket (R.H.) |
1 |
| 3 |
171-59-05000 |
Support (R.H) |
1 |
| 4 |
171-59-06000 |
Bracket (L.H.) |
1 |
| 5 |
01643-33080 |
Washer 30 |
10 |
| 6 |
01011-53020 |
Bolt M30*3*120 |
8 |
| 7 |
171-59-04000 |
Support (L.H) |
1 |
| 8 |
01011-53310 |
Bolt M33*3*110 |
8 |
| 9 |
01643-33380 |
Washer 33 |
10 |
| 10 |
01010-51860 |
Bolt M18*60 |
8 |
| 11 |
01643-31845 |
Washer 18 |
8 |
| 12 |
171-59-09000 |
Guard plate (L.H.) |
1 |
| 13 |
171-59-02000 |
Guard plate |
1 |
| 14 |
171-59-03000 |
Guard plate (R.H.) |
1 |
| 15 |
01580-12722 |
Nut M27 |
4 |
| 16 |
01643-32780 |
Washer 27 |
8 |
| 17 |
175-978-5210 |
Bolt |
4 |
| 18 |
01010-51230 |
Bolt M12*30 |
26 |
| 19 |
01643-31232 |
Washer 12 |
26 |
| 20 |
195-56-11320 |
Plate |
4 |
| 21 |
154-54-42220 |
Rubber cushion |
8 |
| 22 |
195-54-45490 |
Block |
4 |
| 23 |
195-54-45510 |
Shaft ring |
4 |
| 24 |
171-59-00001 |
Seat |
2 |
| 25 |
171-59-08000 |
Bracket |
2 |
| 26 |
175-978-1260 |
Adjusting gasket |
2 |
| 27 |
01011-53325 |
Bolt M33*3*125 |
1 |
| 28 |
01010-53385 |
Bolt M33*3*85 |
1 |
| 29 |
01010-52465 |
Bolt M24*65 |
8 |
| 30 |
01643-32460 |
Washer 24 |
20 |
| 31 |
01010-52770 |
Bolt M27*70 |
4 |
| 32 |
01010-52470 |
Bolt M24*70 |
12 |
| 33 |
175-978-1232 |
Shim |
12 |
| 34 |
09420-01907 |
Armrest |
2 |
| 35 |
175-978-1270 |
Handle |
2 |
| 36 |
175-978-1250 |
Adjusting gasket |
2 |
| 37 |
171-59-10000 |
Wiring harness, Rear lamp |
1 |
|
|
|
|
