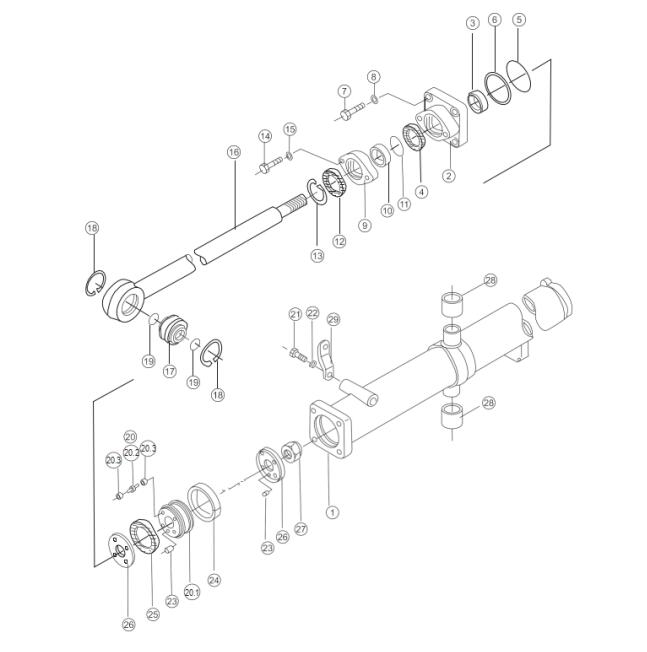

Shantui SD32 Lifting Cylinder Assy L.H.and R.H. 171-62-01000 171-62-02000
Part Name: Lifting Cylinder Assy L.H.and R.H.
Part Number: 171-62-01000 171-62-02000
Machine Model: SD32
Hotline:0086-18052293627 (whatsapp & wechat)
序号 |
部件号 |
|
数量 |
NO. |
PART NO. |
|
Q'TY |
0 |
171-62-01000 |
Lift oil cylinder ass'y (L.H.) |
1 |
0 |
171-62-02000 |
Lift oil cylinder ass'y (R.H.) |
1 |
1 |
171-62-01400 |
Cylinder body |
1 |
2 |
175-63-13131 |
Oil cylinder head |
1 |
3 |
07177-07530 |
Bushing |
1 |
4 |
707-51-75110 |
Seal ring |
1 |
5 |
07000-12135 |
O-ring |
1 |
6 |
07146-02136 |
Guard ring |
1 |
7 |
01010-52470 |
Bolt M24*70 |
4 |
8 |
01602-22472 |
Washer 24 |
4 |
9 |
175-63-13630 |
Seal cap |
1 |
10 |
07177-07515 |
Bushing |
1 |
11 |
07000-13095 |
O-ring |
1 |
12 |
144-63-94170 |
Ring, Dust |
1 |
13 |
07179-00097 |
Retainer |
1 |
14 |
01010-51655 |
Bolt M16*55 |
2 |
15 |
01602-21648 |
Washer 16 |
2 |
16 |
175-63-13120 |
Piston rod |
1 |
17 |
07137-05008 |
Spherical Plain Bearing |
1 |
18 |
04065-01110 |
Retainer ring |
2 |
19 |
07000-13050 |
O-ring |
2 |
20 |
175-63-92662 |
Piston |
1 |
21 |
01010-51245 |
Bolt M12*45 |
1 |
22 |
01643-31232 |
Washer 12 |
1 |
23 |
04020-00616 |
Cylindrical pin |
2 |
24 |
07155-01435 |
Trim ring |
1 |
25 |
04059-01020 |
Iron wire |
1 |
26 |
175-63-12352 |
Retainer ring |
2 |
27 |
171-62-01001 |
Nut |
1 |
28 |
175-63-12540 |
Bushing |
2 |
29 |
175-63-12370 |
Plate |
1 |
