Shantui SD32 Sprocket Tooth Block 175-27-22325 175-27-22325A
Part Name: Sprocket Tooth Block
Part Number: 175-27-22325 175-27-22325A
Machine Model: SD32
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com

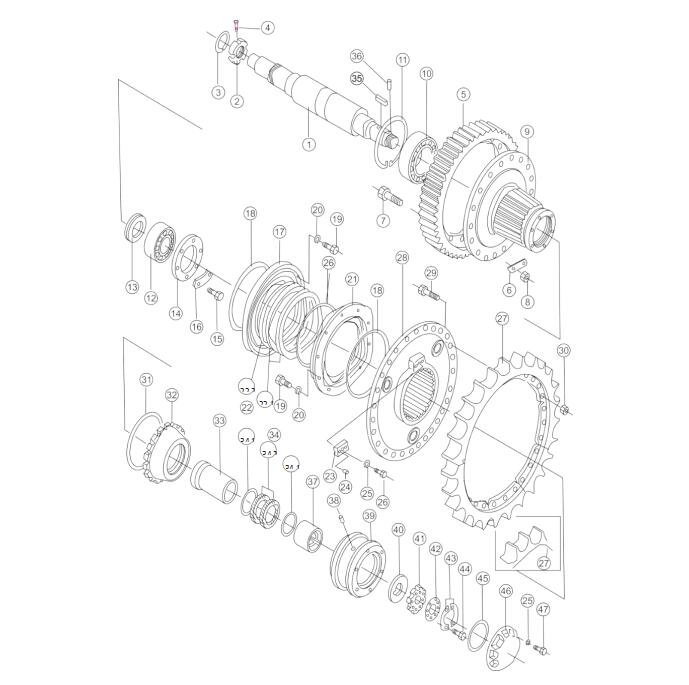

| 序号 |
部件号 |
零件名称 |
|
数量 |
适用机型 |
| NO. |
PART NO. |
PART NAME |
|
Q'TY |
MODEL |
| 1 |
175-27-31343 |
半轴 |
Half shaft |
2 |
|
| 2 |
170-27-12472 |
螺母 |
Nut |
2 |
|
| 3 |
170-27-12480 |
环 |
Ring |
2 |
|
| 4 |
170-27-12491 |
销 |
Pin |
2 |
|
| 5 |
175-27-31362 |
齿圈 |
Gear ring |
2 |
|
| 6 |
175-27-31370 |
锁片 |
Locking plate |
18 |
|
| 7 |
175-27-12181 |
螺栓 |
Bolt |
36 |
|
| 8 |
01582-02419 |
螺母 M24*1.5 |
Nut M24*1.5 |
36 |
|
| 9 |
175-27-31384 |
齿轮毂 |
Gear hub |
2 |
|
| 10 |
GB288-23134CC3 |
调心滚子轴承 |
Spherical Roller Bearing |
2 |
|
| 11 |
04071-00280 |
挡圈 |
Retainer ring |
2 |
|
| 12 |
170-09-13250 |
双列圆柱轴承 |
Double row cylindrical bearing |
2 |
|
| 13 |
175-27-22131 |
垫环 |
Loop |
2 |
|
| 14 |
175-27-22140 |
法兰盘 |
Flange |
2 |
|
| 15 |
01010-51440 |
螺栓 M14*40 |
Bolt M14*40 |
12 |
|
| 16 |
170-27-12210 |
锁垫 |
Lock washer |
6 |
|
| 17 |
154-27-12152 |
盖 |
Cover |
2 |
|
| 18 |
07000-15410 |
O 形圈 |
O-ring |
4 |
|
| 19 |
01010-51230 |
螺栓 M12*30 |
Bolt M12*30 |
40 |
|
| 20 |
01602-21236 |
垫圈 12 |
Washer 12 |
40 |
|
| 21 |
154-27-12162 |
盖 |
Cover |
2 |
|
| 22 |
170-27-00021 |
浮动油封总成 |
Floating oil seal ass'y |
2 |
|
| 22.1 |
170-27-12513 |
浮动油封 |
Floating oil seal |
2 |
|
| 22.2 |
170-27-12520 |
O 形圈 |
O-ring |
2 |
|
| 23 |
175-27-31480 |
锁挡 |
Block |
2 |
|
| 24 |
170-27-12250 |
定位销 |
Pin, Dowel |
4 |
|
| 25 |
01602-21648 |
垫圈 16 |
Washer 16 |
14 |
|
| 26 |
01252-71635 |
螺钉 M16*35 |
Screw M16*35 |
2 |
|
| 27 |
175-27-22325 |
齿块 |
Tooth block |
18 |
|
| 27 |
175-27-22325A |
齿块 |
Tooth block |
18 |
|
| 28 |
175-27-31394 |
链轮毂 |
Sprocket hub |
2 |
|
| 29 |
178-27-11150 |
螺栓 |
Bolt |
54 |
|
| 30 |
01803-12430 |
螺母 M24 |
Nut M24 |
54 |
|
| 31 |
07000-15315 |
O 形圈 |
O-ring |
2 |
|
| 32 |
175-27-22150 |
螺母 |
Nut |
2 |
|
| 33 |
175-27-31411 |
隔套 |
Spacer |
2 |
|
| 34.1 |
175-27-32711 |
浮动油封 |
Floating oil seal |
2 |
|
| 34 |
175-27-00120 |
浮动油封总成 |
Floating oil seal ass'y |
2 |
|
| 34.2 |
100-27-11330 |
O 形圈 |
O-ring |
2 |
|
| 35 |
04000-01580 |
平键 |
Flat key |
2 |
|
| 36 |
175-27-32510 |
定位销 |
Pin, Dowel |
2 |
|
| 37 |
175-27-31441 |
轴套 |
Sleeve |
2 |
|
| 38 |
04020-01638 |
圆柱销 |
Cylindrical pin |
2 |
|
| 39 |
175-27-31510 |
支座 |
Seat |
2 |
|
| 40 |
175-27-22255 |
垫圈 |
Washer |
2 |
|
| 41 |
175-27-22272 |
螺母 |
Nut |
2 |
|
| 42 |
175-27-31550 |
锁片 |
Locking plate |
2 |
|
| 43 |
175-27-31560 |
锁片 |
Locking plate |
2 |
|
| 44 |
01010-51225 |
螺栓 M12*25 |
Bolt M12*25 |
4 |
|
| 45 |
07000-15185 |
O 形圈 |
O-ring |
2 |
|
| 46 |
175-27-22242 |
盖 |
Cover |
2 |
|
| 47 |
01010-51645 |
螺栓 M16*45 |
Bolt M16*45 |
12 |
|
|
|
|
|
|
|
