Shantui SD32 Transmission Housing 178-15-11130
Part Name: Transmission Housing
Part Number: 178-15-11130
Machine Model: SD32
Hotline:0086-18052293627 (whatsapp & wechat)

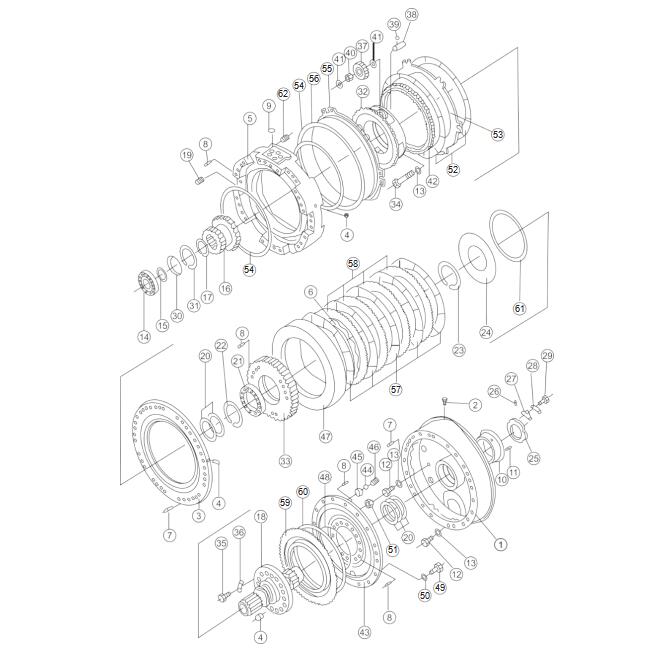

| 序号 |
部件号 |
零件名称 |
|
数量 |
适用机型 |
| NO. |
PART NO. |
PART NAME |
|
Q'TY |
MODEL |
| 0 |
175-15-00226 |
变速箱 |
Transmission case |
1 |
|
| 1 |
178-15-11130 |
壳 |
Housing |
1 |
|
| 2 |
234-15-12780 |
螺钉 |
Screw |
3 |
|
| 3 |
175-15-41140 |
垫板 |
Plate |
1 |
|
| 4 |
145-14-11320 |
螺塞 |
Screw plug |
12 |
|
| 5 |
175-15-41150 |
活塞窒 |
Piston cabin |
1 |
|
| 6 |
175-15-42890 |
波状弹簧 |
Spring, Waveform |
5 |
|
| 7 |
175-15-31210 |
定位销 |
Pin, Dowel |
4 |
|
| 8 |
04020-01228 |
圆柱销 |
Cylindrical pin |
12 |
|
| 9 |
07000-73022 |
O 形圈 |
O-ring |
5 |
|
| 10 |
175-15-41310 |
套环 |
Collar |
1 |
|
| 11 |
04020-00616 |
圆柱销 |
Cylindrical pin |
1 |
|
| 12 |
01010-51435 |
螺栓 M14*35 |
Bolt M14*35 |
2 |
|
| 13 |
01602-01442 |
垫圈 14 |
Washer 14 |
8 |
|
| 14 |
GB283-NU212C4 |
圆柱滚子轴承 |
Cylindrical roller bearing |
1 |
|
| 15 |
04064-06020 |
挡圈 |
Retainer ring |
1 |
|
| 16 |
175-15-42131 |
齿轮 |
Gear |
1 |
|
| 17 |
04064-08530 |
挡圈 |
Retainer ring |
1 |
|
| 18 |
175-15-42213 |
轴 |
Shaft |
1 |
|
| 19 |
145-14-12790 |
弹簧 |
Spring |
24 |
|
| 20 |
175-15-42850 |
密封环 |
Sealing ring |
5 |
|
| 21 |
GB276-61924 |
深沟球轴承 |
Deep groove ball bearings |
1 |
|
| 22 |
130-09-16780 |
卡环 |
Snap ring |
2 |
|
| 23 |
04070-00130 |
挡圈 |
Retainer ring |
1 |
|
| 24 |
175-15-42180 |
碟形弹簧 |
Disk-shaped spring |
1 |
|
| 25 |
234-21-12180 |
螺帽 |
Nut |
1 |
|
| 26 |
175-15-42220 |
销 |
Pin |
1 |
|
| 27 |
234-21-12190 |
垫片 |
Shim |
1 |
|
| 28 |
234-21-12210 |
锁片 |
Locking plate |
1 |
|
| 29 |
01010-50816 |
螺栓 M8*16 |
Bolt M8*16 |
2 |
|
| 30 |
175-15-42340 |
挡油板 |
Oil baffle plate |
1 |
|
| 31 |
130-09-15740 |
卡环 |
Snap ring |
1 |
|
| 32 |
175-15-42364 |
行星架 |
Carrier |
1 |
|
| 33 |
175-15-42571 |
齿轮 ( 外鼓 ) |
Gear (Outer drum) |
1 |
|
| 34 |
01010-51490 |
螺栓 M14*90 |
Bolt M14*90 |
6 |
|
| 35 |
175-15-42230 |
铰制孔螺栓 |
Bolt, Hinge |
16 |
|
| 36 |
175-15-42240 |
锁片 |
Locking plate |
8 |
|
| 37 |
175-15-42491 |
齿轮 |
Gear |
3 |
|
| 38 |
175-15-42552 |
轴 |
Shaft |
3 |
|
| 39 |
04260-00635 |
钢球 |
Steel ball |
3 |
|
| 40 |
09232-03838 |
轴承 |
Bearing |
3 |
|
| 41 |
09233-03820 |
止推垫圈 |
Thrust washer |
6 |
|
| 42 |
175-15-42650 |
齿圈 |
Gear ring |
1 |
|
| 43 |
175-15-42412 |
油缸体 |
Oil cylinder body |
1 |
|
| 44 |
04260-00952 |
钢球 |
Steel ball |
2 |
|
| 45 |
175-15-42971 |
阀套 |
Valve cover |
2 |
|
| 46 |
234-15-12790 |
螺塞 |
Screw plug |
2 |
|
| 47 |
175-15-42421 |
外鼓 |
Outer drum |
1 |
|
| 48 |
175-15-42430 |
O 形圈 |
O-ring |
1 |
|
| 49 |
01010-51230 |
螺栓 M12*30 |
Bolt M12*30 |
12 |
|
| 50 |
01602-21236 |
垫圈 12 |
Washer 12 |
12 |
|
| 51 |
01582-01210 |
螺母 M12*1.5 |
Nut M12*1.5 |
16 |
|
| 52 |
175-15-12715 |
摩擦片 |
Friction disk |
13 |
|
| 53 |
175-15-42721 |
垫板 |
Plate |
1 |
|
| 54 |
175-15-12750 |
密封环 |
Sealing ring |
2 |
|
| 55 |
175-15-42870 |
活塞 |
Piston |
1 |
|
| 56 |
195-15-12740 |
密封环 |
Sealing ring |
1 |
|
| 57 |
154-15-12715 |
摩擦片 |
Friction disk |
5 |
|
| 58 |
281-15-12720 |
齿片 |
Tooth piece |
4 |
|
| 59 |
175-15-42740 |
活塞 |
Piston |
1 |
|
| 60 |
175-15-42750 |
密封环 |
Sealing ring |
1 |
|
| 61 |
234-15-11220 |
密封环 |
Sealing ring |
1 |
|
