Shantui SD32 Transmission Pump 07433-71103 07430-71113 07433-71021
Part Name: Transmission Pump
Part Number: 07433-71103 07430-71113 07433-71021
Machine Model: SD32
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com

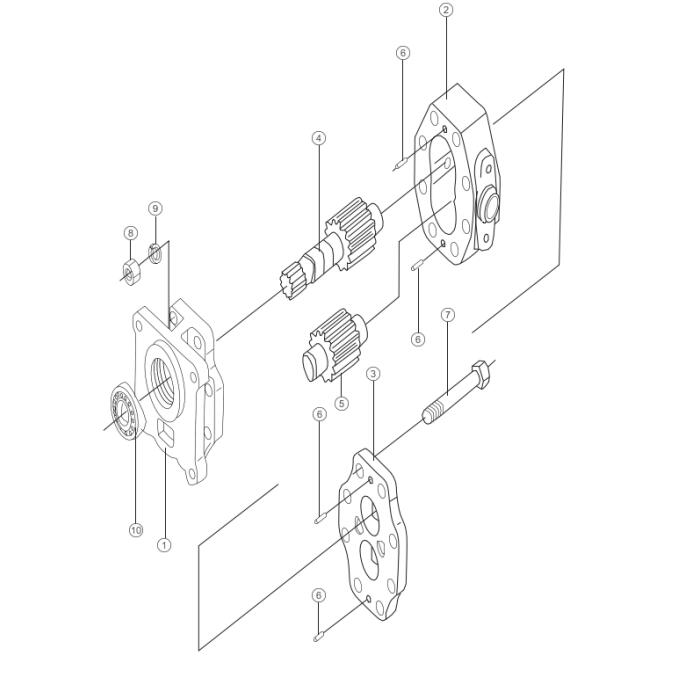

| 序号 |
部件号 |
零件名称 |
|
数量 |
适用机型 |
| NO. |
PART NO. |
PART NAME |
|
Q'TY |
MODEL |
| 1 |
07430-71113 |
泵座组件 |
Bracket, Pump |
1 |
|
| 2 |
07433-71021 |
泵体 |
Body, Pump |
1 |
|
| 3 |
07430-71132 |
泵盖组件 |
Cover, Pump |
1 |
|
| 4 |
07433-71042 |
主动齿轮 |
Driving gear |
1 |
|
| 5 |
07433-71052 |
被动齿轮 |
Driven gear |
1 |
|
| 6 |
04020-00820 |
圆柱销 |
Cylindrical pin |
4 |
|
| 7 |
01050-51295 |
螺栓 M12*1.5*95 |
Bolt M12*1.5*95 |
8 |
|
| 8 |
01582-11210 |
螺母 M12*1.5 |
Nut M12*1.5 |
8 |
|
| 9 |
01602-21236 |
垫圈 12 |
Washer 12 |
8 |
|
| 10 |
07430-71160 |
油封 |
Oil seal |
1 |
|
|
|
|
|
|
|
