Shantui Bulldozer SD32D

Engine Power: 235kw or 257kW/2000rpm
Engine Model: Cummins NTA855-C360S10, QSNT-C345 or Weichai WP12
Blade Capacity: * Straight Titling Blade-10.0M3
* Angle Blade-6.2M3
* Semi-U Blade-11.7M3
Track Shoes Width: 560/ 610/ 660/ 710mm
Overall Weight
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

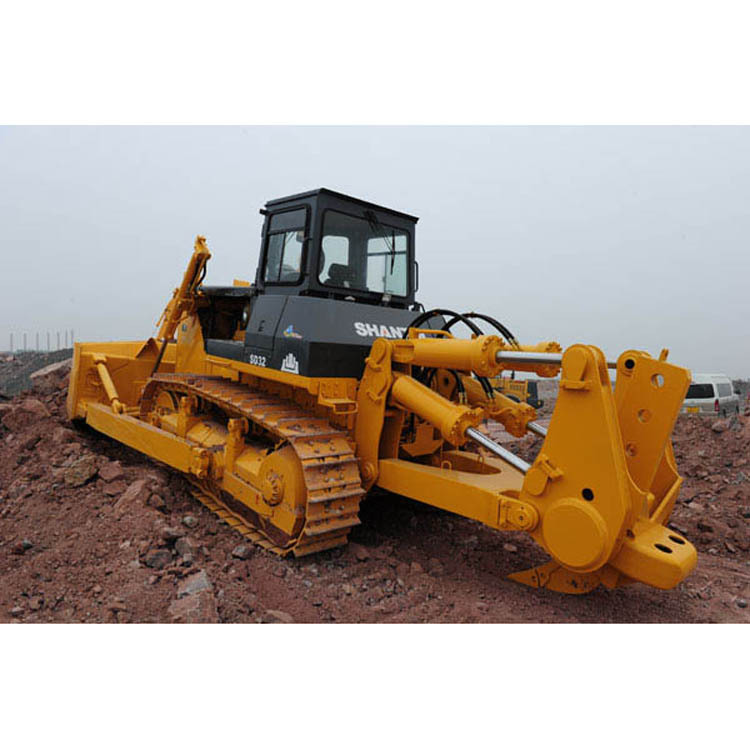

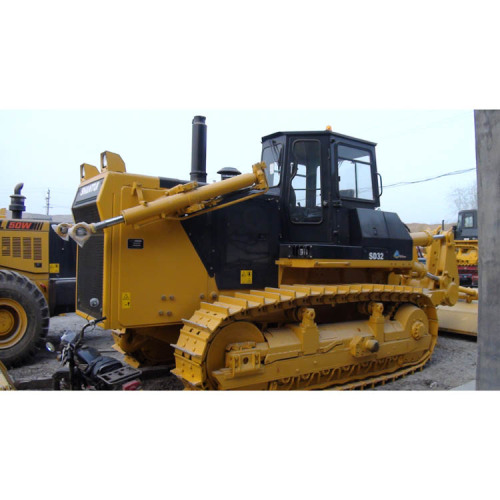

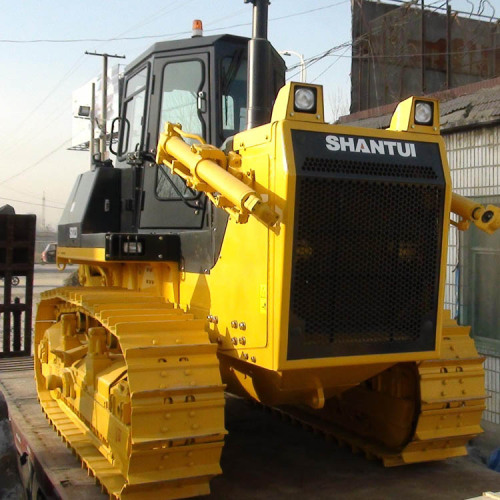

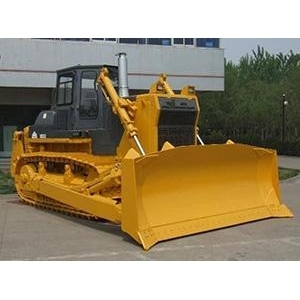

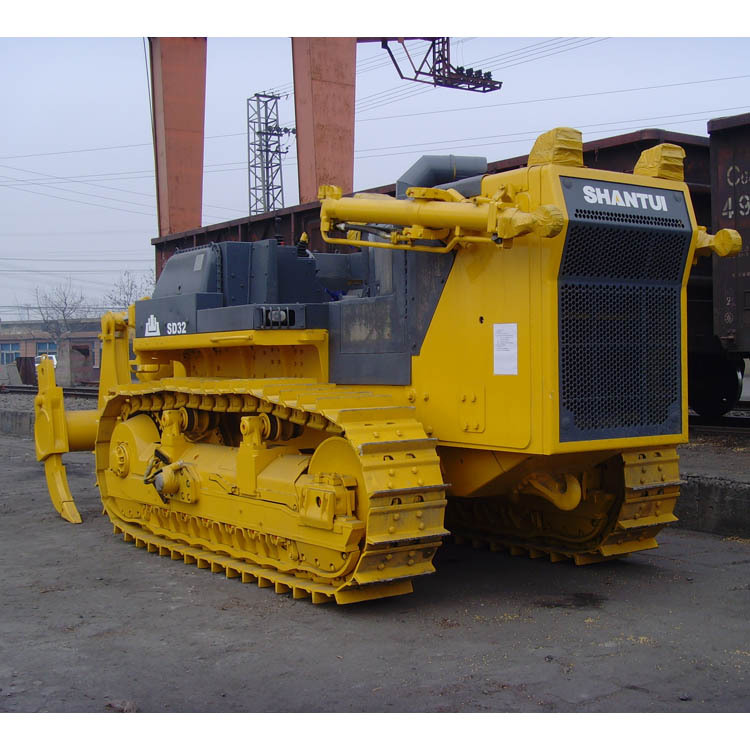

Shantui Bulldozer SD32D

320hp Derset Bulldozer



Engine Power: 235kw or 257kW/2000rpm

Engine Model: Cummins NTA855-C360S10, QSNT-C345 or Weichai WP12

Blade Capacity: * Straight Titling Blade-10.0M3

* Angle Blade-6.2M3

* Semi-U Blade-11.7M3

Track Shoes Width: 560/ 610/ 660/ 710mm

Overall Weight: 39,500kg (Standard)





Shantui SD32D is designed based on the SD32 bulldozer, the SD32D desert bulldozer was developed in response to the demands of desert working conditions by Shantui.

Shantui SD32D bulldozer adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations. It’s equipped with Chongqing Cummins NTA855-C360 engine, of which the pistons, cylinder sleeves, piston rings, and piston pins adopt the originally imported Cummins products. The high capacity sand-retaining radiator and the engine intake pre filter are equipped to abundantly adapt to the climate characteristics of serious sand wind and high air temperature in deserts and semi-deserts and the earthworks in deserts and semi-deserts. Shantui SD32D New Minging Dozer With Ripper for Sale Good Price Desert Dozer.



Power System

● The installed WP12/QSNT-C345 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

● The rated power reaches 257kW, featuring high torque reserve coefficient.

● The radially sealed intake system is applied to effectively prolong the engine life.



Drive system

● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.



Working adaptability

● The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.

● The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.

● The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.

PARAMETER

Parameter name

SD32D

(Desert version)

Performance parameters



Operating weight (Kg)

39500

Ground pressure (kPa)

96

Engine



Engine model

QSNT-C345

Rated power/rated speed (kW/rpm)

257/2000

Overall dimensions



Overall dimensions of machine (mm)

8650*4130*3760

Driving performance



Forward speed (km/h)

F1:0-3.6 F2:0-6.6 F3:0-11.5

Reversing speed (km/h)

R1:0-4.4 R2:0-7.8 R3:0-13.5

Chassis System



Center distance of track (mm)

2140

Width of track shoes (mm)

560/610/660/710

Ground lengthmm

3150

Tank capacity



Fuel tank (L)

640

Working device

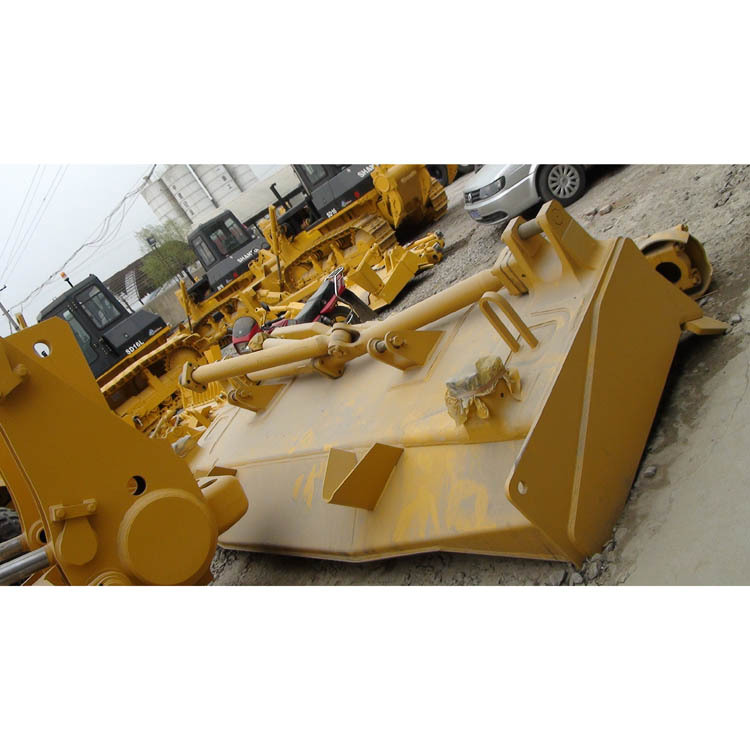

Blade type

Straight tilting blade , Angle Blade and Semi-U blade

Digging depth (mm)

560/630/560

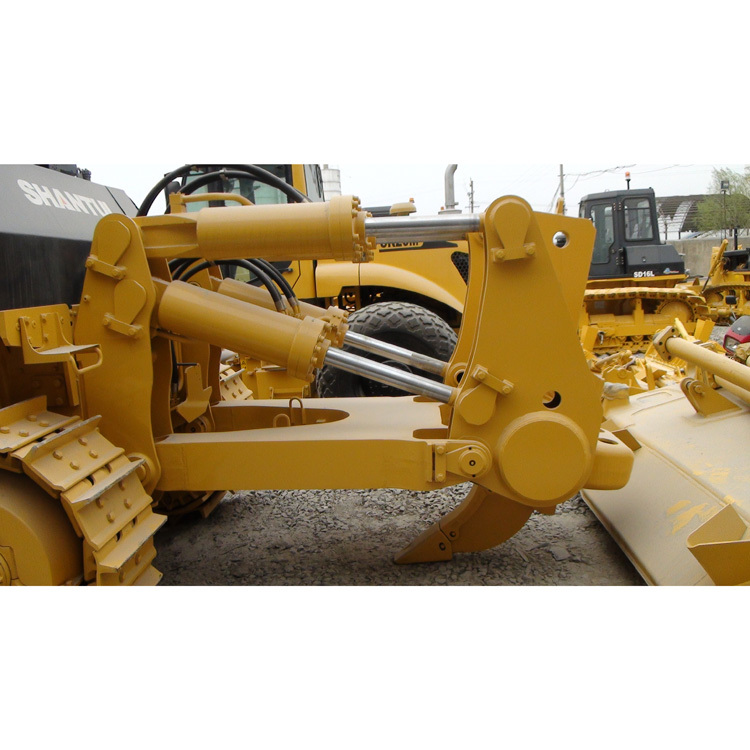

Ripper type

Single-shank three-shank

Ripping depth (mm)

1,250 (Single-shank) and 842 (Three-shank)
