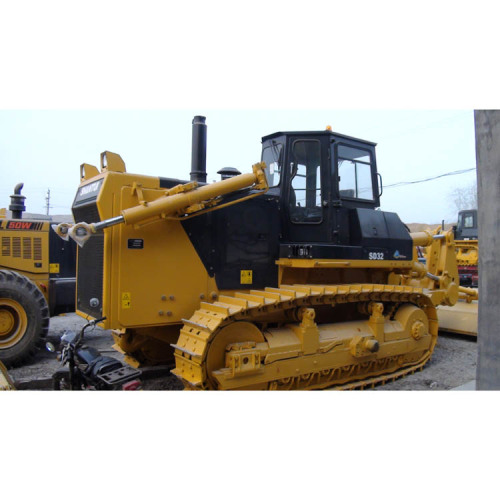

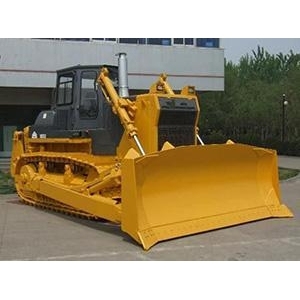

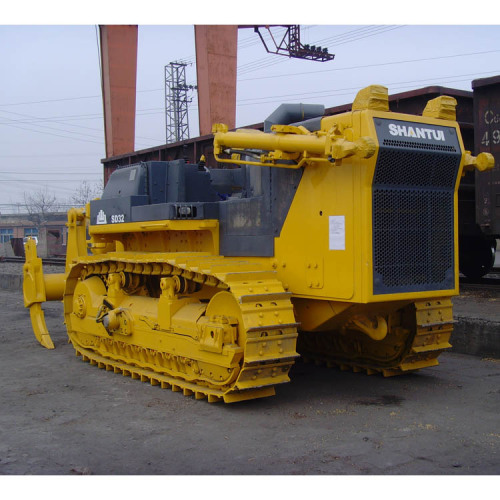

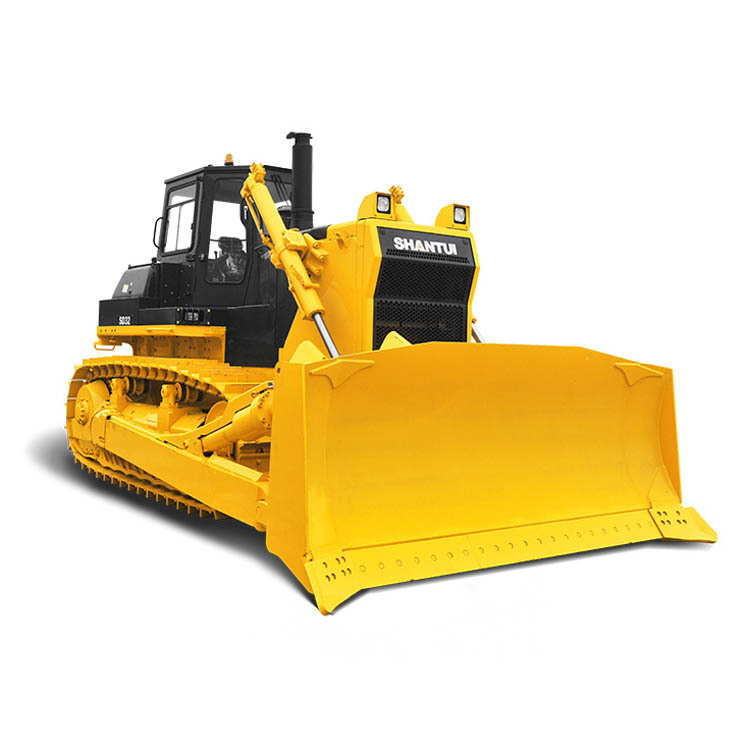

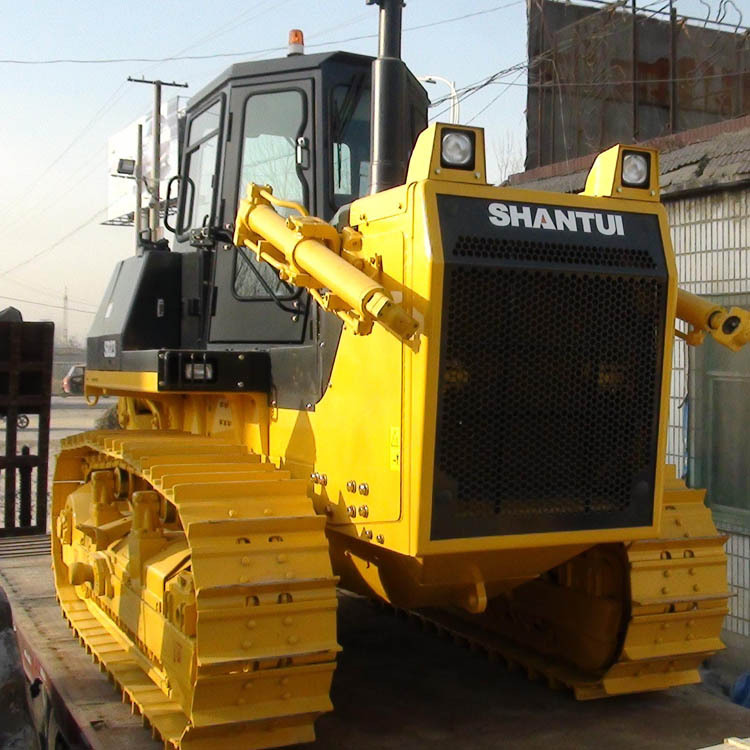

Shantui Bulldozer SD32D

Engine Power: 235kw or 257kW/2000rpm
Engine Model: Cummins NTA855-C360S10, QSNT-C345 or Weichai WP12
Blade Capacity: * Straight Titling Blade-10.0M3
* Angle Blade-6.2M3
* Semi-U Blade-11.7M3
Track Shoes Width: 560/ 610/ 660/ 710mm
Overall Weight
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

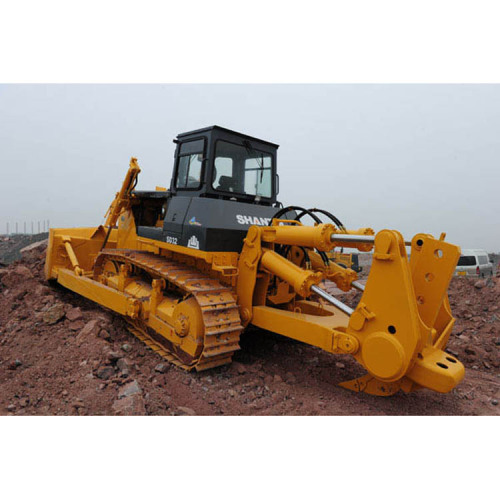

Shantui Bulldozer SD32W

320hp Rock Bulldozer



Engine Power: 235kw or 257kW/2000rpm

Engine Model: Cummins NTA855-C360S10, QSNT-C345 or Weichai WP12

Blade Capacity: * Straight Titling Blade-10.0M3

* Angle Blade-6.2M3

* Semi-U Blade-11.7M3

Track Shoes Width: 560mm (heavy duty)

Overall Weight: 40,900kg (Standard)



Shantui SD32W rock bulldozer is specially designed in response to the demands of severe heavy-load working conditions, such as decomposed rock and frozen earth. It is equipped with a hydraulic drive system with hydraulic control technology, and an advanced structure, providing reliable performance and convenient and flexible operation. Shantui SD32W bulldozer adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.The rock bulldozer is equipped with special tracks and the high strength wear-resistant blade and push rod to remarkably improve the wear resistance and especially adapt to the heavyduty conditions such as coarse sand, stone, decomposed lithosphere, and frozen earth. Shantui SD32W Track Bulldozer Rock Type for Sale.



Power System

● The installed WP12/QSNT-C345 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

● The rated power reaches 257kW, featuring high torque reserve coefficient.

● The radially sealed intake system is applied to effectively prolong the engine life.



Drive system

● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.



Working adaptability

● The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.

● The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.

● The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.



Maintenance

The eye-catching signs say accurately when to maintain the machine. In addition, this battery is maintenance-free. In addition, the open-type hood could have the inside parts exposed as much as possible, easily realizing the inspection and the maintenance.

This maintenance cost is much lower than others due to the reliability and thus the long Mean Time Between Failures (MTBF).

Shantui perfect service network, as well as timely, thoughtful and warmhearted service, could give your assurance to use this machine, satisfying the expectancy for Shantui products.

PARAMETER

Parameter name

SD32

(Standard version)

SD32W

 (Rock version)

Performance parameters





Operating weight (Kg)

40200

40900

Ground pressure (kPa)

97.7

99.4

Engine





Engine model

WP12/QSNT-C345

WP12/QSNT-C345

Rated power/rated speed (kW/rpm)

257/2000258/2000

258/2000257/2000

Overall dimensions





Overall dimensions of machine (mm)

8650*4130*3760

8650*4130*3760

Driving performance





Forward speed (km/h)

F1:0-3.6 F2:0-6.6 F3:0-11.5

F1:0-3.6 F2:0-6.6 F3:0-11.5

Reversing speed (km/h)

R1:0-4.4 R2:0-7.8 R3:0-13.5

R1:0-4.4 R2:0-7.8 R3:0-13.5

Chassis System





Center distance of track (mm)

2140

2140

Width of track shoes (mm)

560/610/660/710

560/610/660/710

Ground lengthmm

3150

3150

Tank capacity





Fuel tank (L)

640

640

Working device





Blade type

Straight tilting blade , Angle Blade and Semi-U blade

Rock straight tilting blade, rock angle blade and rock semi-U blade

Digging depth (mm)

560/630/560

560/630/560

Ripper type

Single-shank three-shank

Single-shank three-shank

Ripping depth (mm)

1,250 (Single-shank) and 842 (Three-shank)

1,250 (Single-shank) and 842 (Three-shank)
