Shantui Bulldozer SD42 SD42-3

Engine Power: 340kw/2200rpm
Engine Model: Cummins KTA19-C525
Blade Capacity: Semi-U Blade-16M3
Track Shoes Width: 610mm
Ripper Type: Single Shank
Overall Weight: 52,000kg (Standard)
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

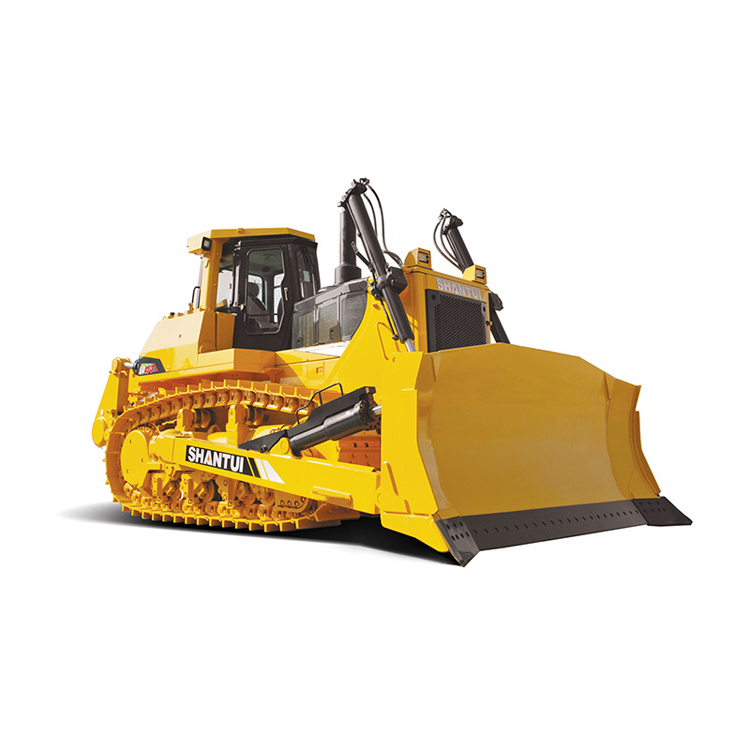

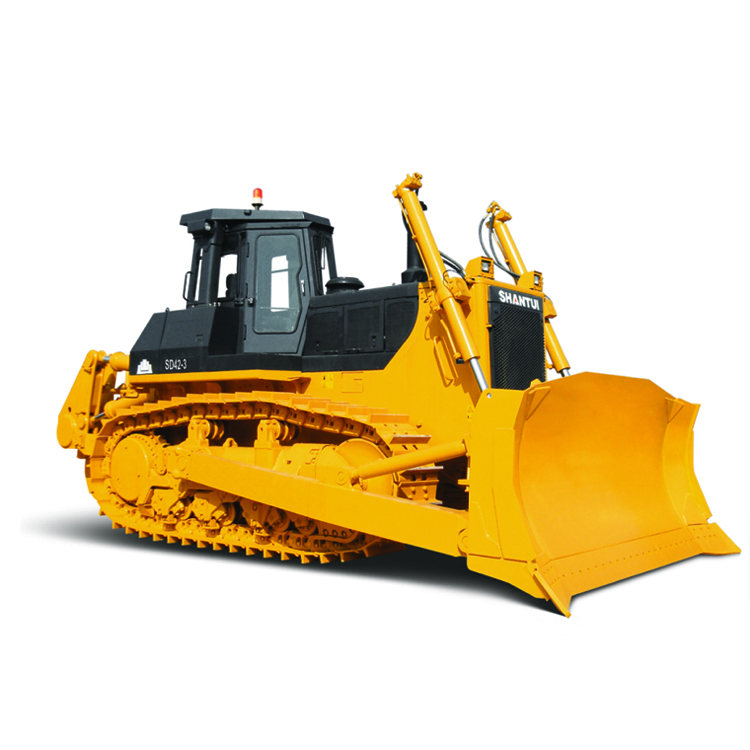

Shantui Bulldozer SD42-3

420hp Large Mining Bulldozer



Engine Power: 340kw/2200rpm

Engine Model: Cummins KTA19-C525

Blade Capacity: Semi-U Blade-16M3

Track Shoes Width: 610mm

Ripper Type: Single Shank

Overall Weight: 52,000kg (Standard)



Shantui SD42 is a machine that challenges the competition head-on with its international class roller suspension and muscular push/pull power. Mainly used in large mine projects, the SD42-3 has the power to adapt to tough working conditions. Top features include single-hand, electronic-control gearshift and steering systems, ROPS and FOPS as well as central pressure measurement, central lubrication and automatic track tensionning. Shantui SD42 SD42-3 Strong 420hp Large Bulldozer for Sale.



Power System

The Cummins KTA19 vertical 4-storke turbocharged engine features strong power.

The three-element single-stage single-phase hydraulic torque converter features high operating efficiency.

Drive system

The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.

Driving/Riding Environment

The ergonomic cab features large space, excellent vision, and good airtightness.

The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.

The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to realize low vibrating noise.

The A/C and heating system, the intelligent display and control terminal with integrated instruments, and fire extinguisher are installed to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.

The safety passage system of the machine guarantees the driver's safety.

PARAMETER

Parameter name

SD42-3STANDARD

Performance parameters



Operating weight (Kg)

52000 (Ripper not include)

Ground pressure (kPa)

123

Engine



Engine model

Chongqing cummins KTA19-C525

Rated power/rated speed (kW/rpm)

340/2200

Overall dimensions



Overall dimensions of machine (mm)

9629*4300*3875

Driving performance



Forward speed (km/h)

012.2/014.8

Reversing speed (km/h)

012.2/014.8

Chassis System



Center distance of track (mm)

2260

Width of track shoes (mm)

610

Ground lengthmm

3560

Tank capacity



Fuel tank (L)

650

Working device



Blade type

Semi-U

Digging depth (mm)

700

Ripper type

Single shank

Ripping depth (mm)

1400
