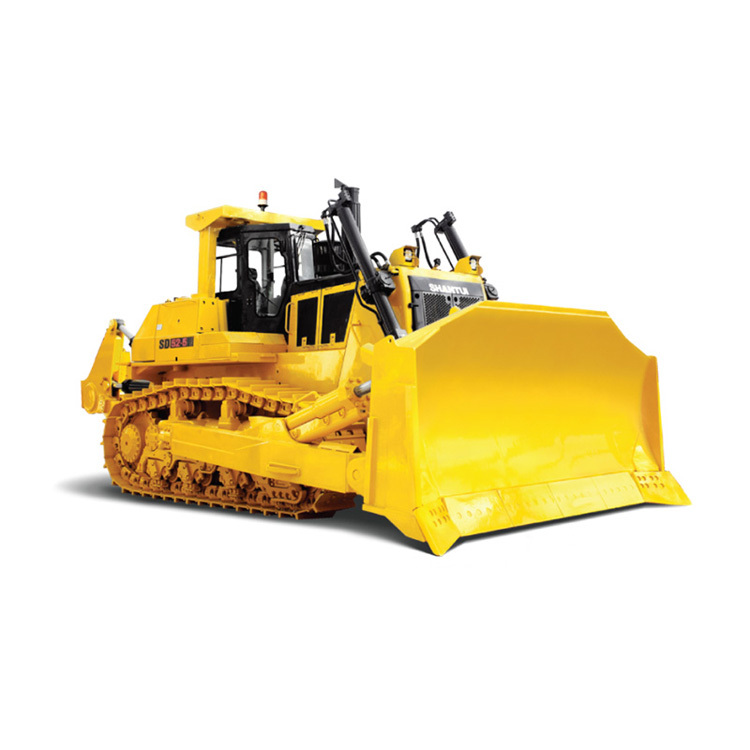

Shantui Bulldozer SD52-5
520hp Largest Minging Bulldozer
Engine Power: 450/1800kw/rpm
Engine Model: Cummins QSK19
Blade Capacity: Semi-U Blade-18.5M3
Track Shoes Width: 610mm
Ripper Type: Single Shank
Overall Weight: 37200/37200kgs
Shantui SD52-5 is the largest bulldozer ever produced in China. You’ve got to see its size and power with your own eyes to believe it! SD52-5 features modular design for easy dis assembly and speedy repair. Its powerful air-cooled, electronically control low fuel consumption engine complies with Euro III emission standards and delivers world class fail safe, systems testing, noise isolation, control and comfort features for operator safety and productivity. Gaint Bulldozer Shantui SD52 SD52-2 World Largest Bulldozer for Sale.
Operating performance
● The high pressure hydraulic system in system pressure of 21MPa is applied to effectively reduce the volumes of hydraulic parts and achieve good operating inching performance.
● The working device is operated by single pilot joystick, featuring flexible operations, high handiness and comfort, and high reliability；
● The traveling system is controlled by single electronic control joystick to realize the “AMT fingertip gearshift" function.
Driving/Riding Environment
● The high-strength heptahedral cab is applied to achieve large space, broad vision, and good space airtightness and effectively isolate the external noise.
● The high-power A/C and heating system is installed and the air vents are reasonably arranged to achieve excellent cooling and heating performances.
● The standard high-grade luxury upholstery integrates A/C air ducts, control panel, cup holder, cigarette lighter, and radio.
Working device

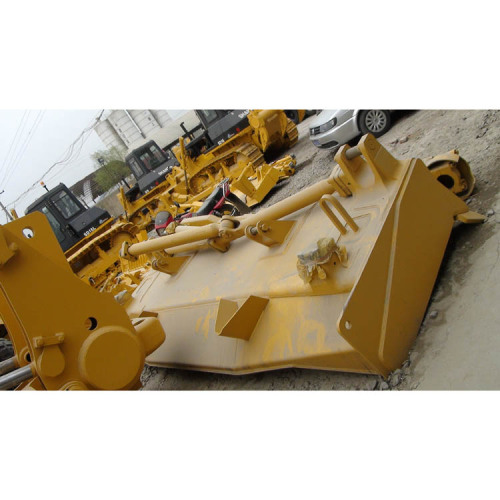

● The standard 18.9m³ semi-U blade features high blade capacity and high working efficiency. The high-strength box structure and high-performance wear-resistant materials are applied to handle all severe working conditions with ease.

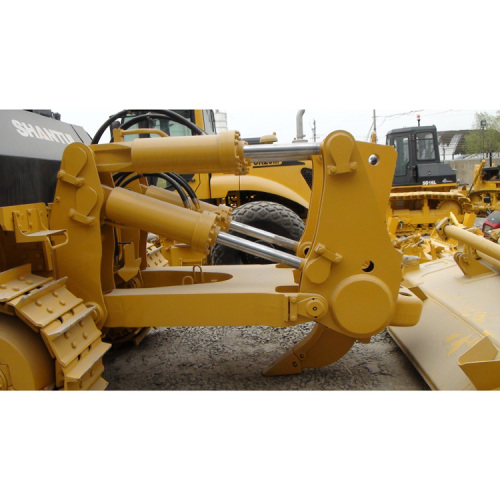

● The huge single-shank ripper incorporates super-strong penetrating force and can be used for the stripping of rock stratum.
|
ITEM |
UNIT |
SD52-5 |
|
L×W×H(Ripper not included) |
mm |
10420×4680×4470 (Ripper included) |
|
Operating weight(Ripper not included) |
t |
67.5(Ripper included) |
|
Engine |
- |
Cummins QSK19 |
|
Engine Emission standard |
- |
Euro III |
|
Rated power |
kW/rpm |
392/1800 |
|
Gradeability |
° |
30 |
|
Blade type |
- |
Semi-U blade |
|
Blade width |
mm |
4695×2265 |
|
Dozing capacity |
m3 |
18.5 |
|
Ma× drop below ground of blade |
mm |
720 |
|
Lift height of blade |
mm |
1660 |
|
Ripper type |
- |
Single ripper |
|
Ripping depthof ripper |
mm |
1435 |
|
Lifting height of ripper |
mm |
1105 |
|
Number of carriers (each side) |
- |
2 |
|
Number of track rollers (each side) |
- |
7 |
|
Number of track shoes (each side) |
- |
40 |
|
Width of track shoe |
mm |
610 |
|
Track gauge |
mm |
2500 |
|
Ground length and ground pressure |
mm/MPa |
3940-0.138 |
|
Pitch |
mm |
280 |
|
Forward speed |
km/h |
0–3.8 |
|
0–6.8 |
||
|
0–11.8 |
||
|
Reverse speed |
km/h |
0–5.1 |
|
0–9.2 |
||
|
0–15.8 |
