Shantui SD13 Steering Oil Pump Assembly 10Y-76-11000
Part Name: Steering Oil Pump Assembly
Part Number: 10Y-76-11000
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
| |

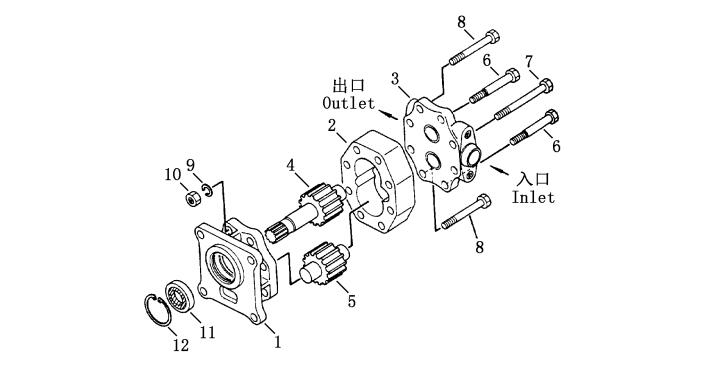

FIG.622 STEERING OIL PUMP |
|
| Index No. |
Part No. |
Description |
Q’ty |
|
10Y-76-11000 |
steering oil pump ass’y |
1 |
| 1 |
07426-71111 |
bracket |
1 |
| 2 |
07429-71020 |
body, pump |
1 |
| 3 |
07426-71131 |
cover, pump |
1 |
| 4 |
07429-71041 |
gear drive |
1 |
| 5 |
07429-71051 |
gear driven |
1 |
| 6 |
07426-11190 |
bolt |
2 |
| 7 |
07426-11090 |
bolt |
4 |
| 8 |
07426-11080 |
bolt |
2 |
| 9 |
01602-01030 |
washer ,spring |
8 |
| 10 |
01582-01008 |
nut |
8 |
| 11 |
07426-71160 |
seal oil |
1 |
| 12 |
04065-04218 |
ring ,snap |
1 |
