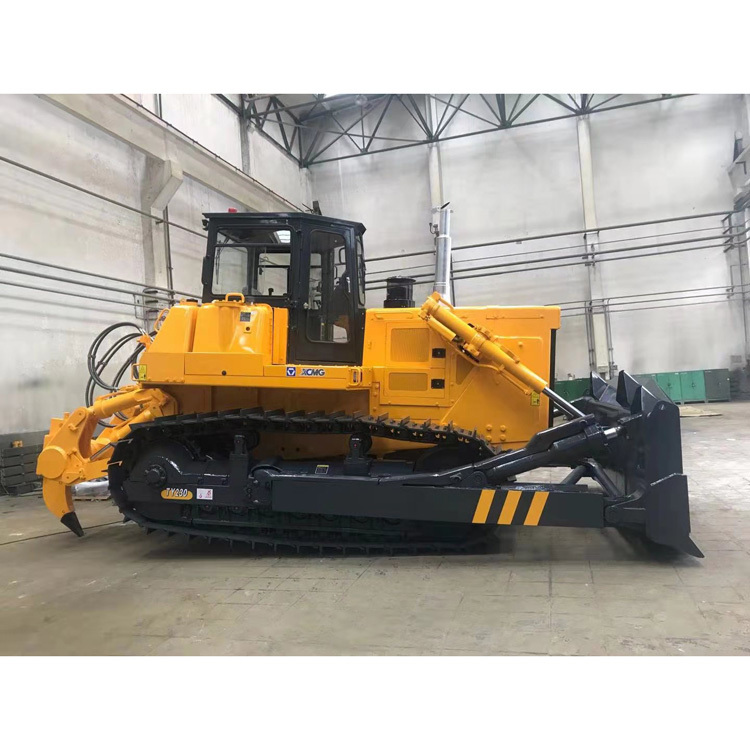

XCMG Bulldozer TY230

Working weight machine:  25740kg
Engine model : Cummins NT855-C280S10
Net Power: (kw/RPM): 179kw 230HP @2000rmp
Gross Power: (kw/RPM): 169kw 230HP @2000rpm
Cylinder number:  6 Bore x stroke-139.7×152.4mm
Maximum torque: 1033 N·m /1400 rpm
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

XCMG Bulldozer TY230



Working weight machine:  25740kg

Engine model : Cummins NT855-C280S10

Net Power: (kw/RPM) 179kw 230HP @2000rmp

Gross Power: (kw/RPM): 169kw 230HP @2000rpm

Cylinder number:  6 Bore x stroke-139.7×152.4mm

Maximum torque: 1033 N·m /1400 rpm

 Fuel consumption rate (g/kW.h): 231g/kW.h





WALK-AROUND



The Cummins NT855-C280S10 diesel engine provides an Output of 169 kW 230 HP with excellent productivity. Vertically opened engine side cover for easy

and safer servicing.High capacity Straight tilt dozer combined the highest power in its class with outstanding productivity.Left hand joystick controls all tractor motion. Right hand joystick controls all the movements of blade and ripper.Electronic monitoring system prevents minor problems form developing into major ones.Wet belt hydraulic assist brake for more stable braking performance.Bolt-on segmented sprocket teeth.

International Bulldozer XCMG TY230 China 230 hp Bulldozer International Model for Sale



OPERATOR’S COMPARTMENT



All steering, direction, and speed changes are made by three joysticks on the left-hand. If the operator wants to move the machine the front left, he simply pulls the first left joystick back. If the operator wants to turn the machine to the front right, the simply pulls the third left joystick back.

1. Low-noise design

   For smoother riding comfort, power train components and  hydraulic control valves are mounted to the frame with rubber pads to soften vibration and shut out noise. The walk-through operator compartment is uncluttered for smooth entry and exit. An adjustable seat with backrest is standard equipment.

2. Three-stage height adjustable armrests

    Three-stage height adjustable arm rests and relocated fuel control lever provide comfortable operation and increased leg space.

3. Electronic monitoring system

   Three-stage height adjustable arm rests and relocated fuel control lever provide comfortable operation and increased leg space.

4. Steering functions and speed control

    Realize the turning to left and to right Realize the turning forward, from first, to second, to third shifting.

5. Blade functions (right hand)

   Straight tilt dozer .Front joystick controls lift and tilt of blade.Rear joystick controls lift of ripper











RELIABILITY FEATURES



1. Field-proven engine

Powerful NT855-C280S10 diesel engines provides a massive output of 169 kW 230 HP. The engine power is transmitted smoothly to the final drives via a high-efficiency torque.

2. Flat bottom frame

A flat bottom frame, the monocoque track frames and forward-mounted pivot shafts provide good maneuverability in muddy terrain by preventing mud from building up under the frame.

3. Sturdy design

Because fewer components mean greater reliability, we’ve designed a simple hull frame made of a thick, single plate. Track frames have a large-section construction for maximum rigidity. Even the box-section construction of the blade back beam is reinforced, all with durability in mind.



EASY MAINTENANCE

Planetary gear gearbox, more reliable to use.

1.Front radiator door Openable and closable radiator mask facilitates radiator cleaning.

2.Oil pressure check ports

  Oil pressure check ports for the power train are centralized on the right hand side of the operator



Main structural features

TY230 crawler bulldozer produced by our company is an improved and upgraded product of TY230 (D85A-18) model.

The machine adopts hydraulic transmission, hydraulic control, electronic monitoring, large capacity shovel and other advanced technology, can be equipped with anti-rollover protection device.

1.  Cummins QSNT-C240 intercooled supercharged engine, in line with the third stage emission standards.

2.  Elastic rubber is designed on the support of the engine and the control, which fully absorbs the shock, making the driver feel comfortable in the tense work and helping to reduce fatigue.

3.  Centralized pressure measurement is adopted to facilitate fault detection and diagnosis.   Optional centralized lubrication, automatic tightening of track and other technologies to facilitate repair and maintenance.















PARAMETER



Engine

Model

Cummins  NT855-C280S10

Type

4-stroke cycle, water-cooled, direct injection

Rated power (kW)

345HP (257KW)

Rated speed (r/min)

2000

Starting method

Electric starting ,11kW/24V

Battery

195Ah / 2 x 12V

Piston displacement

14tr

Hydraulic system of work equipment

Maxi working oil pressure

Pump type

13.7Mpa

CBJ70-E160 gear pump CBJ70-E160

Rated flow (L/min)

90L/min

Track

Track pitch (mm)

216

Track width (mm)

560

No. of track shoes(each side)

39

Length of track on ground (mm)

2840

Track gauge (mm)

2000

Overall size of the machinemm

5459*3725*3380

The use quality of the whole machinekg

25740kg

Type of soil looser

Three teeth

Additional weight (including hydraulic control unit):

2900 kg

Maximum digging depth(mm)

665

Maximum lift above ground(mm)

565

Total ground contact area

31808
